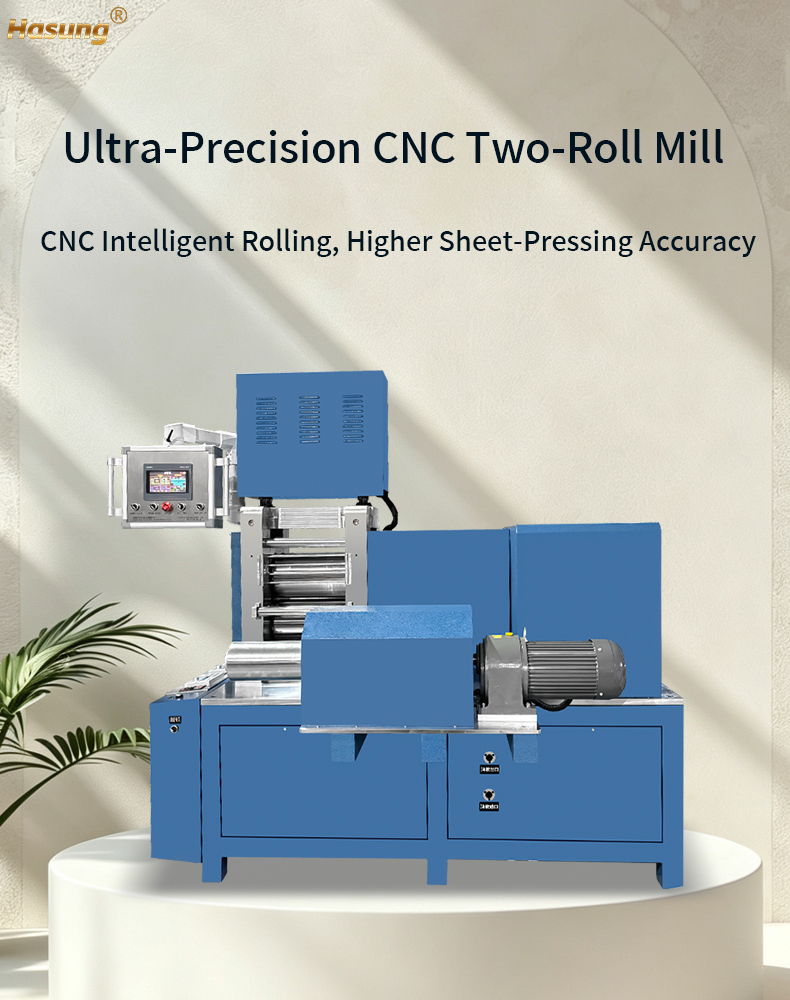

Ultra Precision CNC Two Roll Rolling Mill-Hasung

Short Description:

Model:HS-30HPT

This ultra precision CNC two roll rolling mill is equipped with high wear-resistant rollers, and the CNC system precisely controls the rolling gap, resulting in excellent machining accuracy. Support synchronous automatic material collection during rolling, producing orderly coil materials. The roller surface is well crafted and capable of processing precious metals such as gold, silver, and copper. Finished discharge without loss, suitable for precision compression production of jewelry materials


Product Detail

Product Tags


Product Description

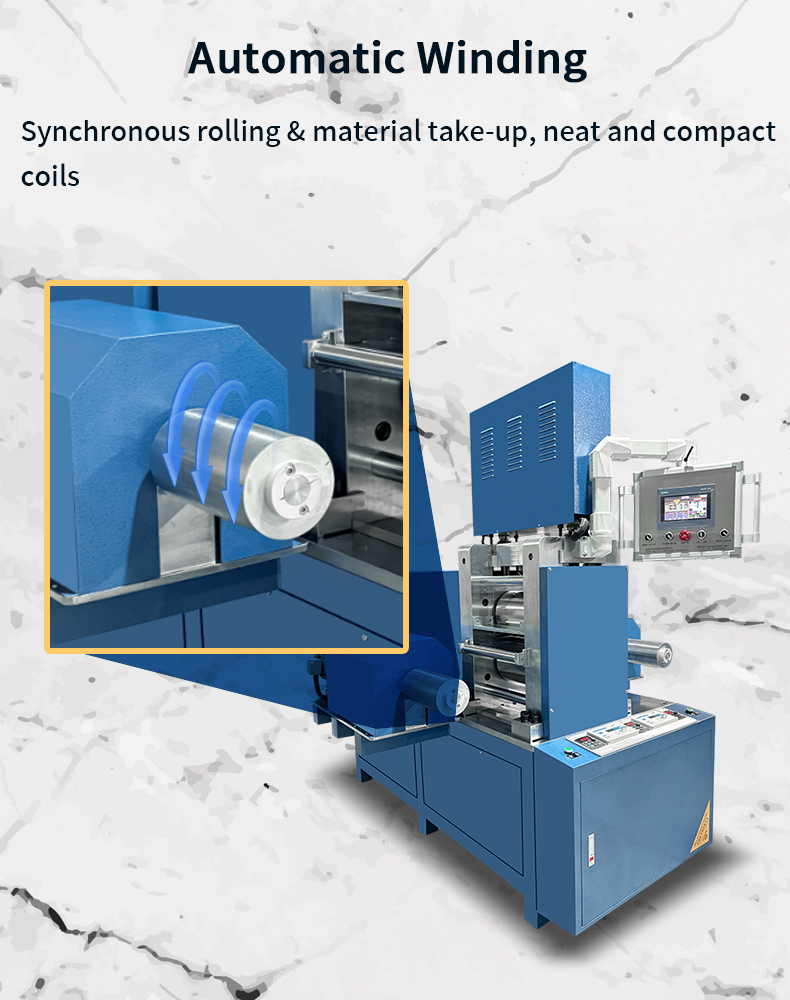

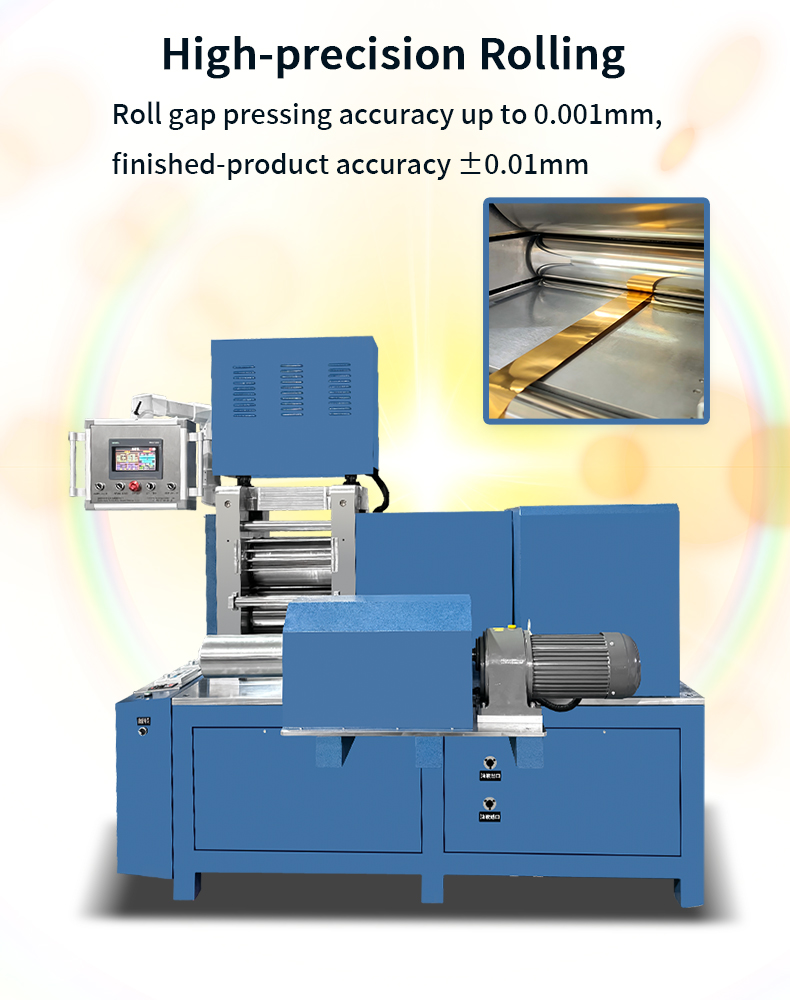

The CNC two roll rolling mill is specially designed for processing precious metal sheets and is suitable for rolling materials such as gold, silver, copper, etc. CNC closed-loop control ensures stable and uniform tablet thickness, effectively reducing thickness deviation. Equipped with a synchronous winding mechanism, the roll material is formed neatly, reducing the need for subsequent secondary sorting processes. The rolling mill has high hardness and wear resistance, and is not easy to scratch the workpiece after long-term use, with extremely low material loss. The equipment has a high degree of automation, reducing manual intervention, improving production efficiency, and meeting the demand for precision sheet production in jewelry factories

Technical Specifications
Model HS-30HPT
Voltage 380V/three-phase
power 22.5KW
roll speed 9.9m/min
Lifting Servo 1.5KW*2
Rolling thickness 40-0.2mm

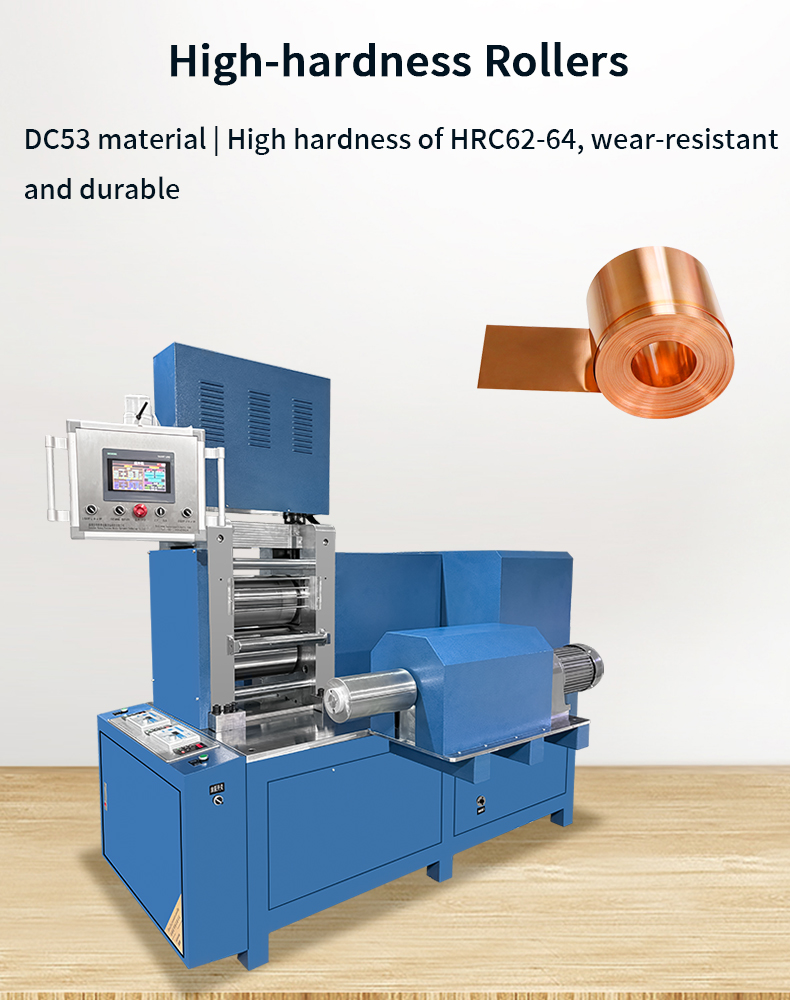

Roll hardness HRC62-64
Roll size φ220×350mm
Roll material DC53
Magnetic Particle Clutch 20kg
Winding motor 3.7KW*2
lubrication system The bearing sleeve is lubricated with butter
Overall Dimensions 2200*1830*2260mm
machine weight about 3500kg

Product Details

HS-30HPT-30-匹超精密数控两辊压片机-英文详情_01 HS-30HPT-30-匹超精密数控两辊压片机-英文详情_02 HS-30HPT-30-匹超精密数控两辊压片机-英文详情_03 HS-30HPT-30-匹超精密数控两辊压片机-英文详情_04 HS-30HPT-30-匹超精密数控两辊压片机-英文详情_05 HS-30HPT-30-匹超精密数控两辊压片机-英文详情_06 HS-30HPT-30-匹超精密数控两辊压片机-英文详情_07 HS-30HPT-30-匹超精密数控两辊压片机-英文详情_09
