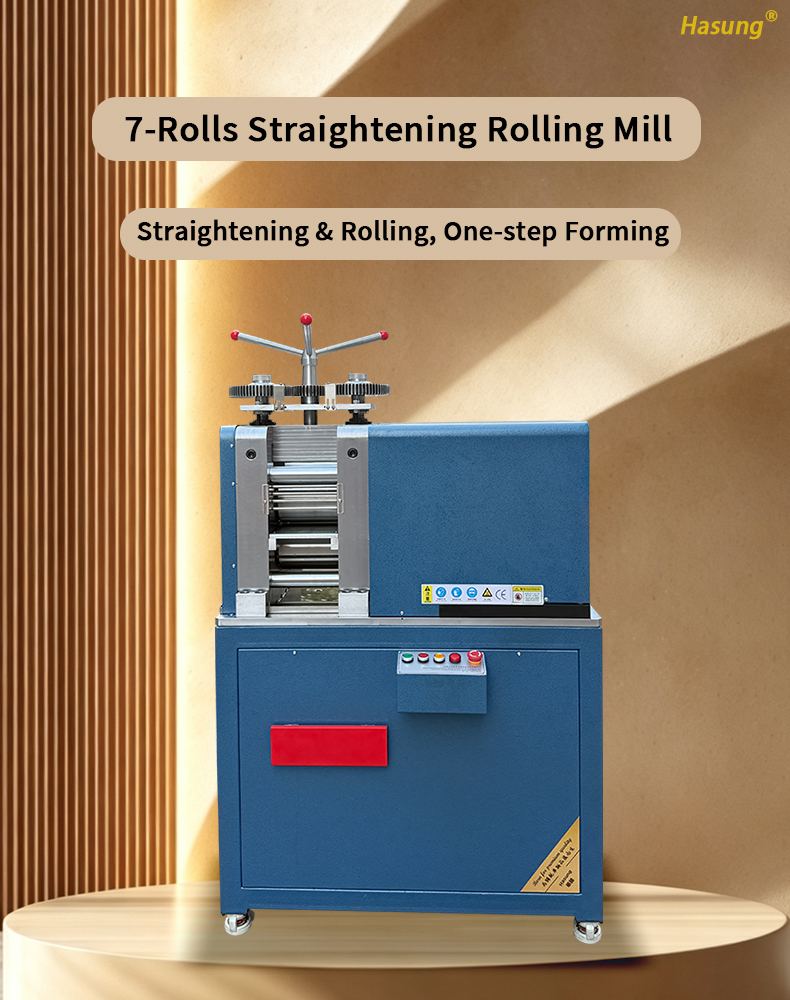

Seven-Rolls Straightening Rolling Mill-Hasung

Short Description:

Model:HS-J10HP

The Hasung Seven-Rolls Straightening Rolling Mill is made of CR12MOV high alloy mold steel, which can complete tablet straightening in one go, with precise adjustment of roller gap and controllable thickness. It is suitable for processing jewelry sheets such as gold, silver, and copper.


Product Detail

Product Tags

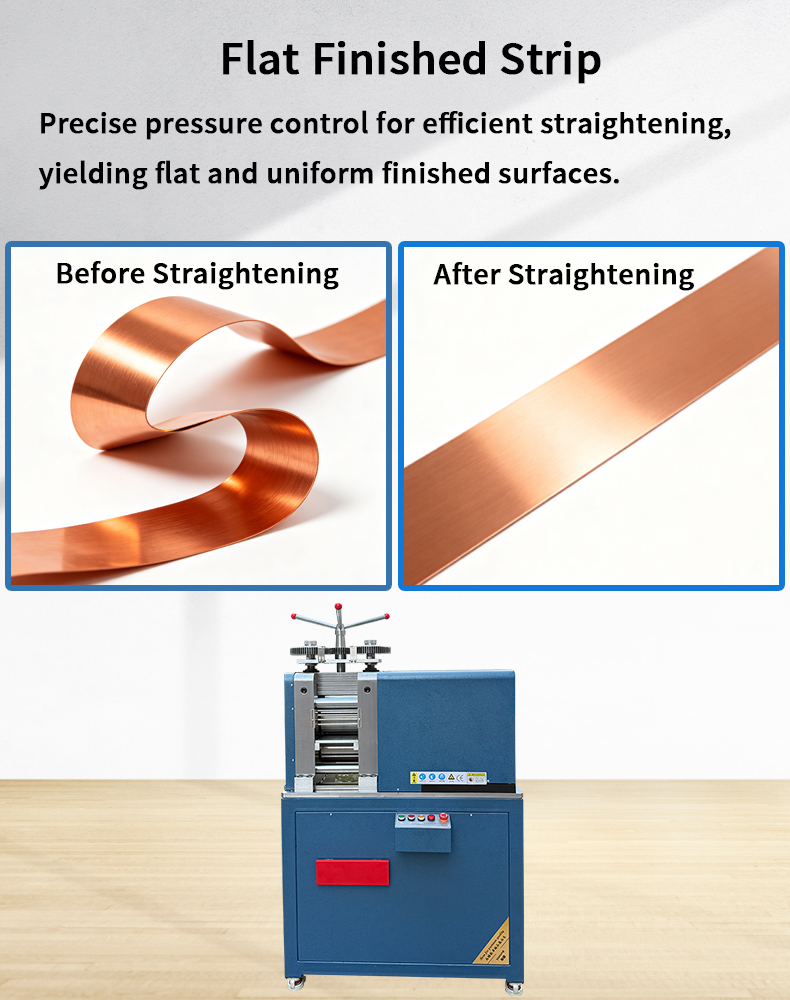

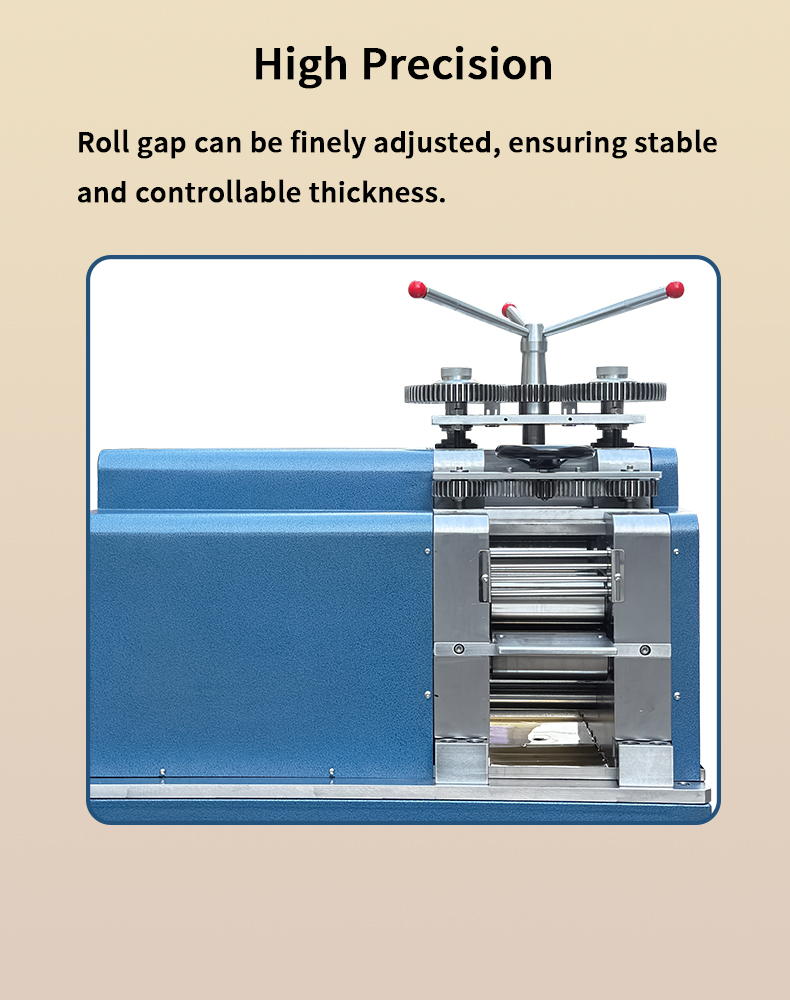

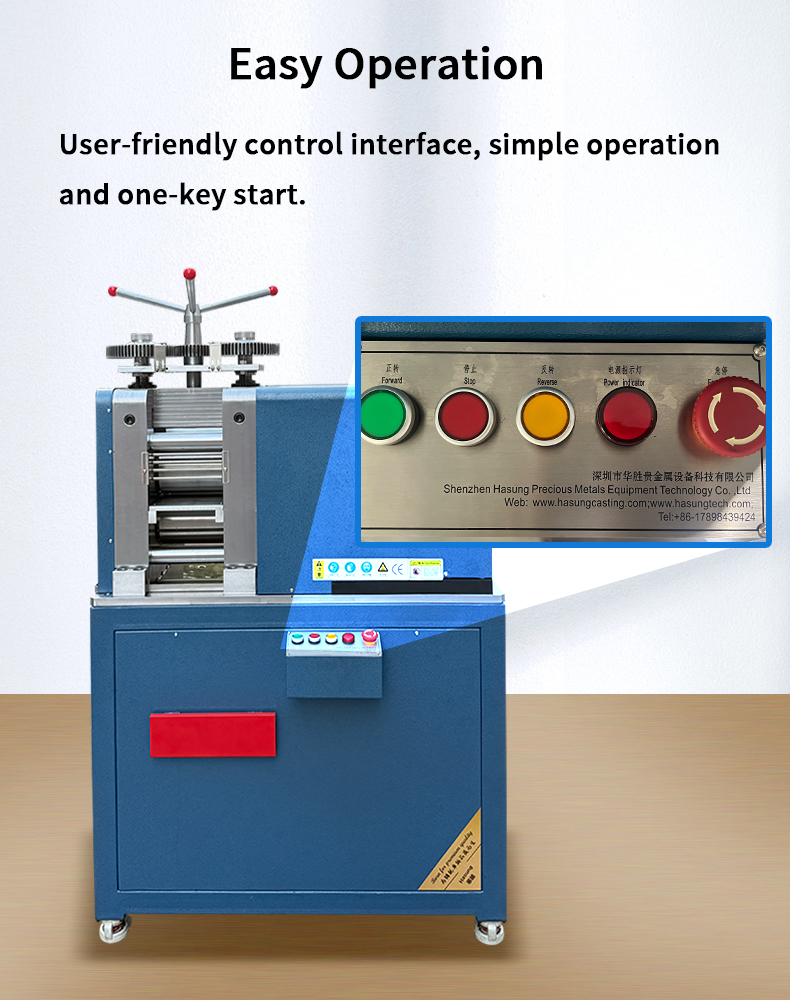

The Hasung Seven-Rolls Straightening Rolling Mill is specially designed for processing precious metal sheets. The roller body is made of CR12MOV high alloy mold steel, which is wear-resistant and has a long service life. The seven roll integrated design allows for synchronous completion of tablet pressing and straightening, eliminating the need for secondary leveling processes. The roller gap can be finely adjusted to produce uniform and stable thickness of the board; The mirror roller protects the raw materials and minimizes material loss during the processing. The whole machine is easy to operate, with one key controllable start and stop for forward and reverse rotation. It processes materials such as gold, silver, and copper, and the finished sheet metal is smooth and polished, greatly improving the efficiency of jewelry and industrial production and processing.

Product Specifications
Model HS-J10HP
voltage 380V three-phase industrial AC power supply
power 7.5KW
Rolling thickness range 1-25mm (with precise adjustment of clearance)

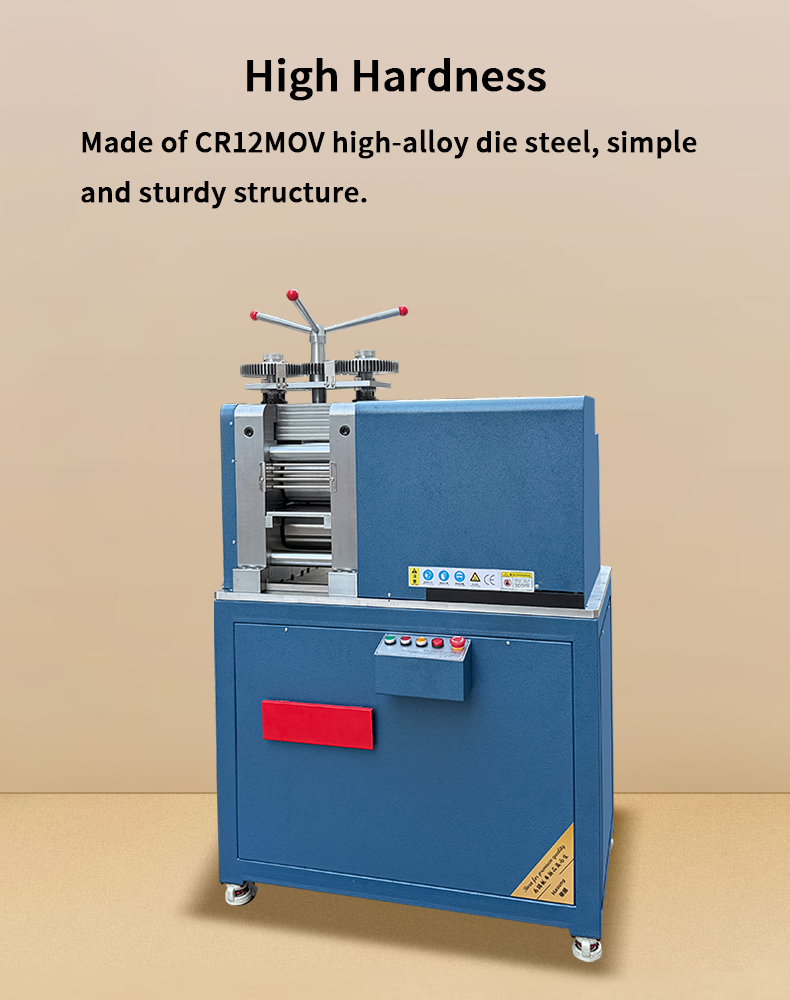

Work roll material Cr12MoV High Alloy Mold Steel
Roll heat treatment hardness HRC60-62
Work roll specifications φ133mm×160mm
Straightening roll specifications φ78mm×160mm
Device dimensions 1200*760*1430mm
weight about1600kg

HS-J10HP-七辊矫直压片机-英文详情_07 HS-J10HP-七辊矫直压片机-英文详情_01 HS-J10HP-七辊矫直压片机-英文详情_03 HS-J10HP-七辊矫直压片机-英文详情_04 HS-J10HP-七辊矫直压片机-英文详情_05 HS-J10HP-七辊矫直压片机-英文详情_06
