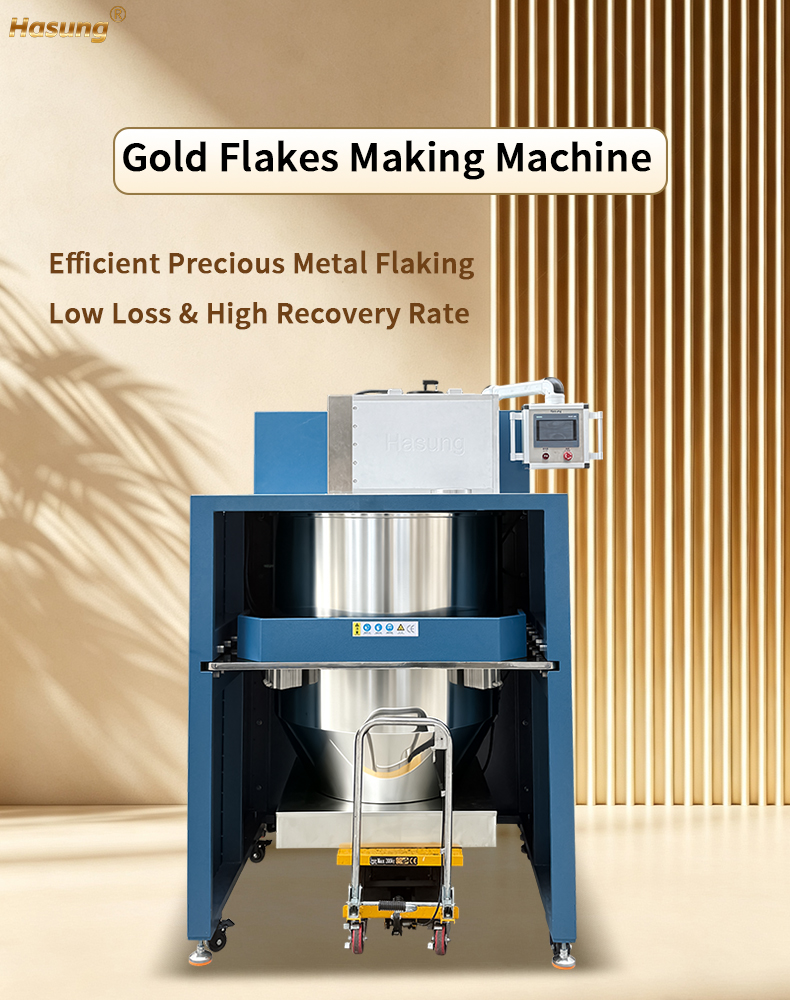

Flakes Making Machine-Hasung

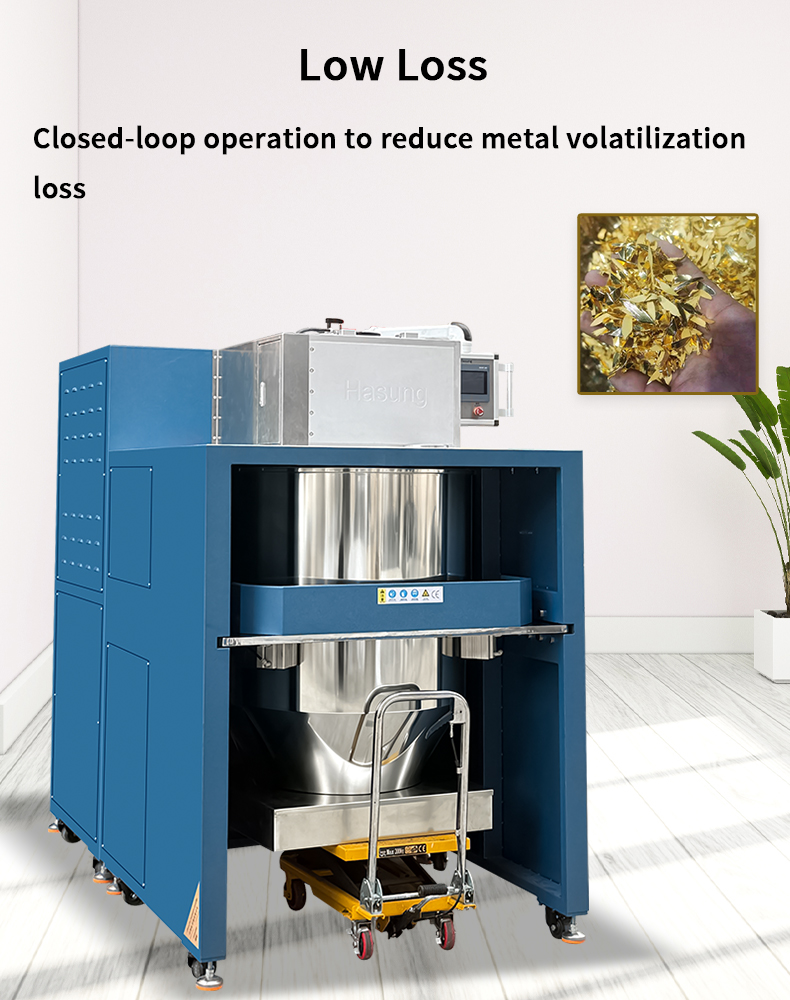

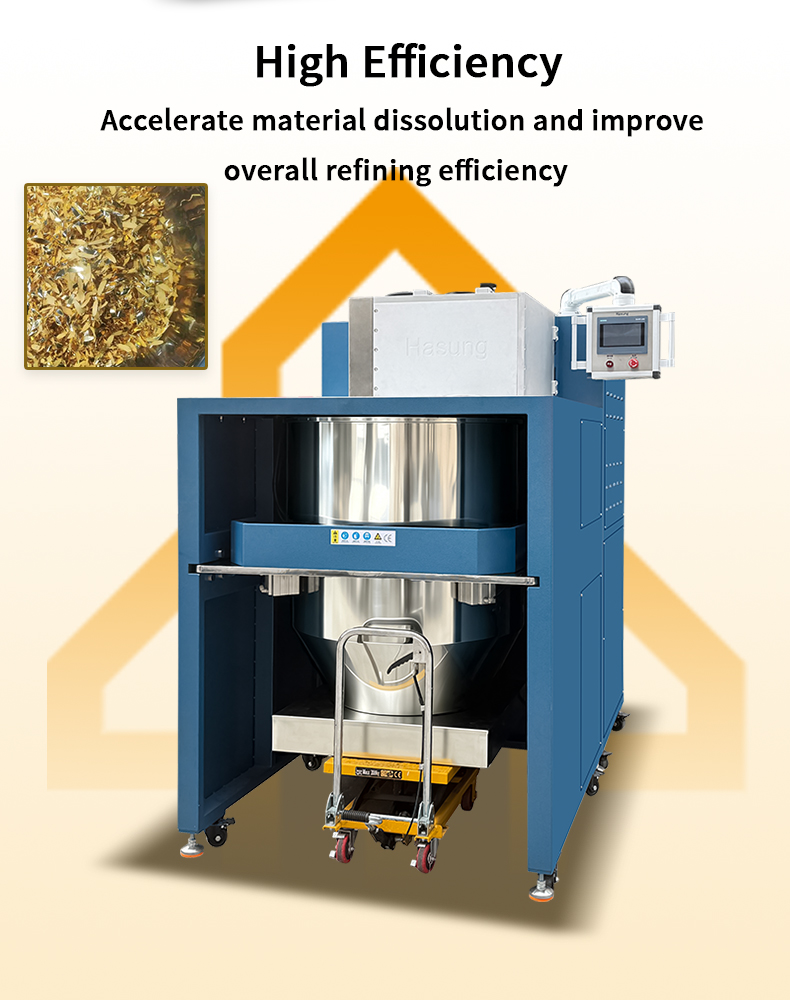

Equipped with Siemens intelligent electronic control system, it runs stably and is easy to control. The enclosed processing chamber isolates air, reducing the high-temperature volatilization loss of precious metals such as gold, silver, platinum, palladium from the source. It can stably generate uniform thin sheets of 0.1 0.15mm, with a larger contact area between the sheets, and significantly improve the subsequent melting and dissolution speed. The equipment is suitable for jewelry factories and precious metal refining workshops, with high consistency of finished products, saving time and materials, and effectively reducing production costs.
| Product Parameters | |
| Model | HS-MS |
| Voltage | 380V,50Hz, 3 phases |
| Capacity | 4kg-100kg |
| Power | 15KW-50KW |

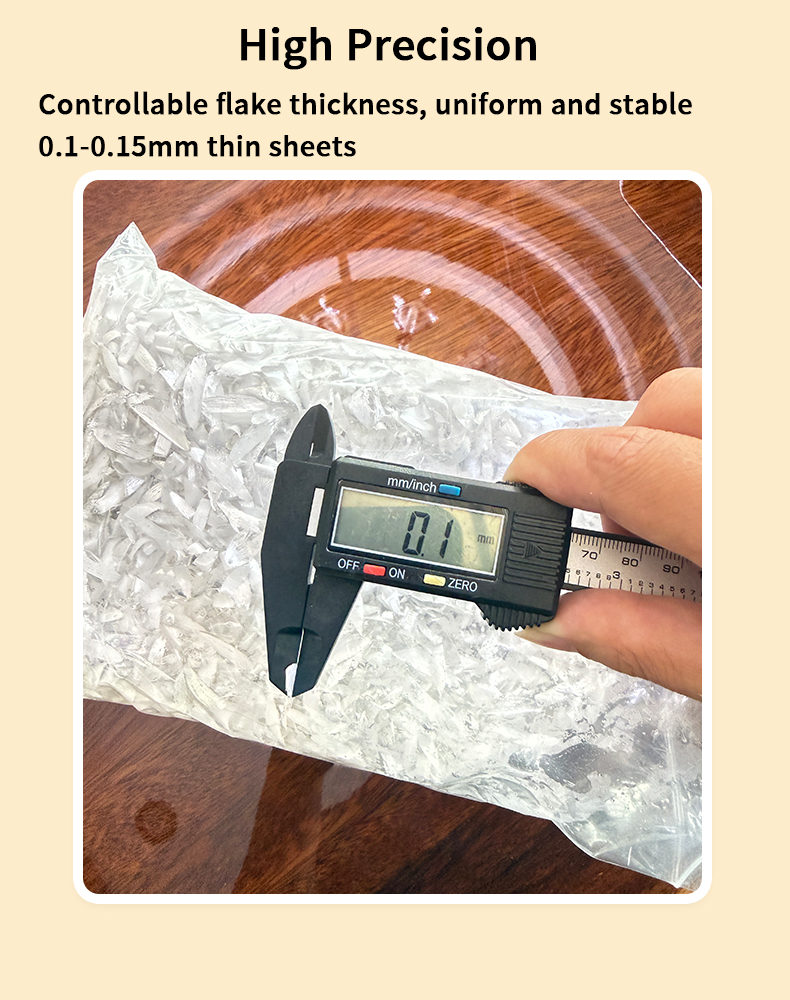

| Film thickness | 0.1-0.15mm |
| Maximum temperature | 1500°C/2100°C |
| Working principle | Adopting the centrifugal disc principle |
| Noble gas | Nitrogen/argon |
| Cooling method | chiller |

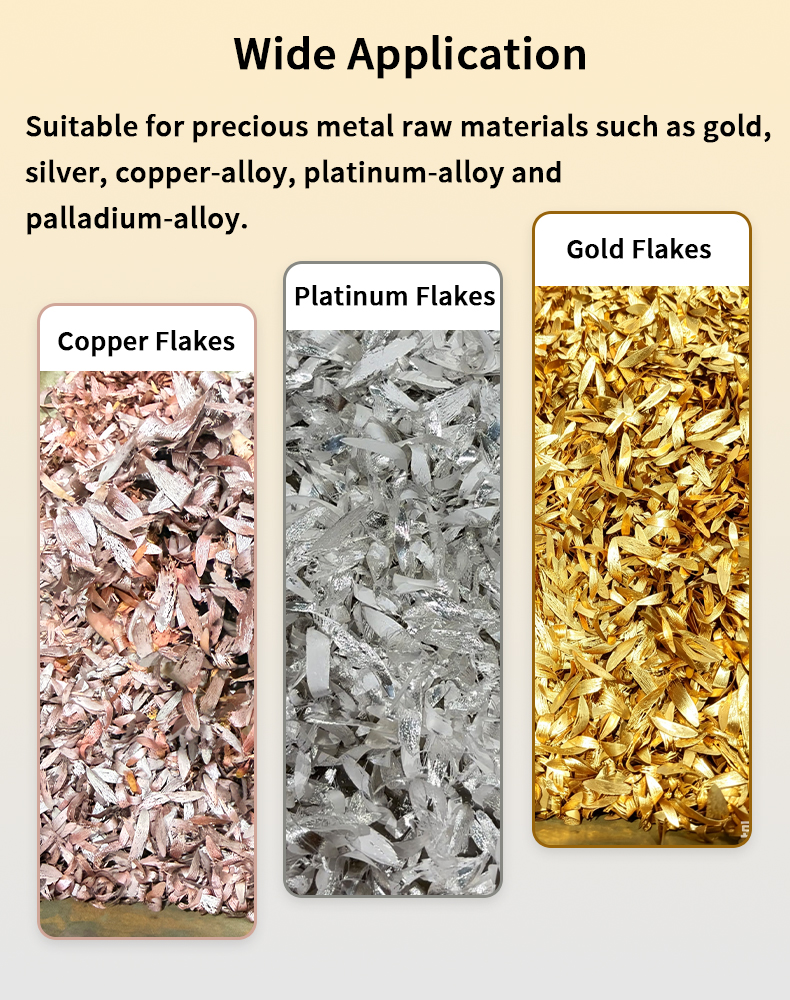

| Cupola metal | Gold/Silver/Copper Alloy (Platinum Alloy/Palladium Alloy) |

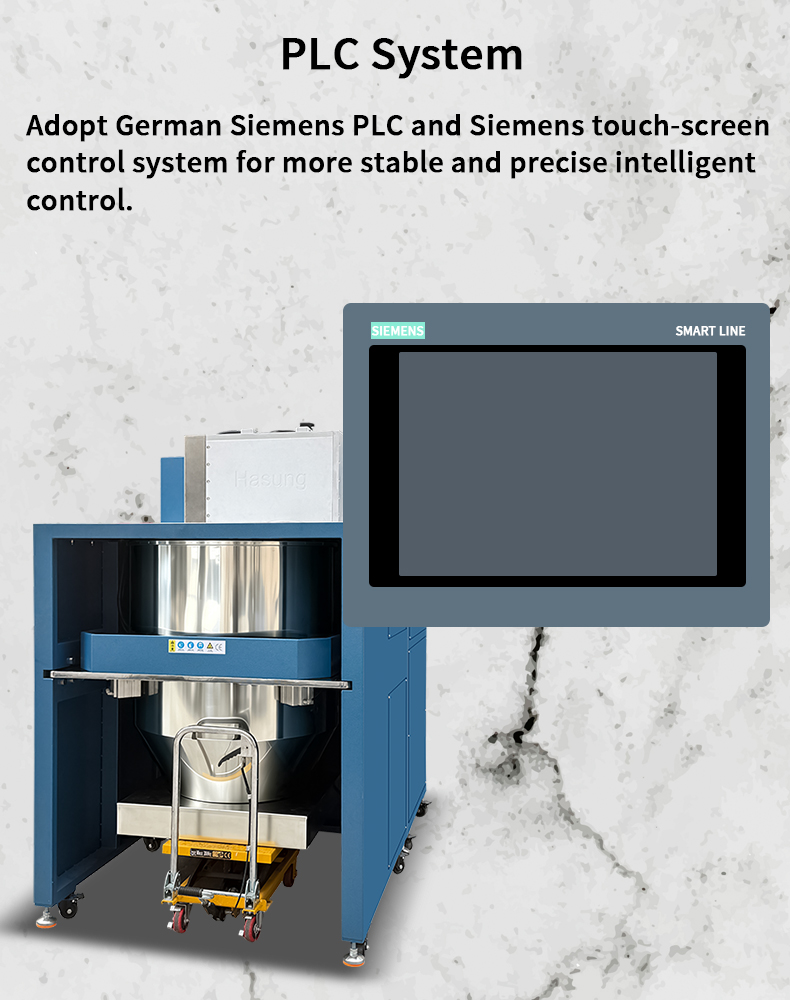

| Control System | Siemens PLC control system |
| Weight | About 450kg-1000kg |
| Device dimensions | 1200*1200*1600mm 1850*1600*2100mm |
