Fully Automatic Hammering Chain Machine With Gold/Silver

Short Description:

Model: HS-2012

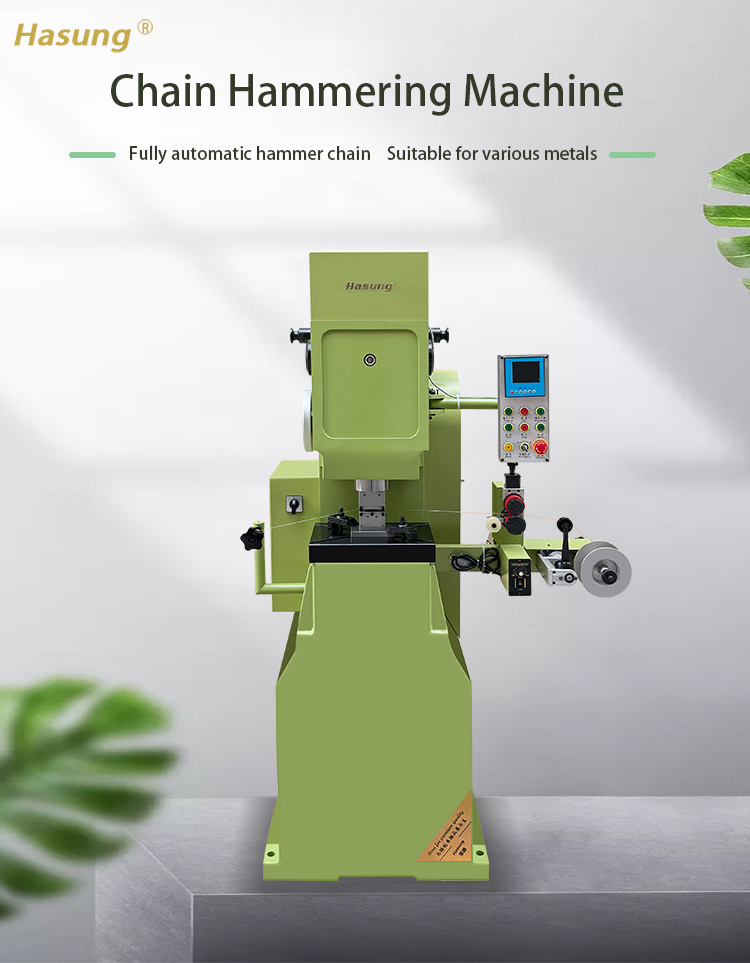

Hasung Fully Automatic Hammering Chain Machine is compatible with various metal chain processing and can produce chains in multiple specifications and styles. With core technology upgrades, the machine features a sturdy frame, stable operation, and low failure rate. Standardized processing ensures uniform chain thickness, pitch, and texture, delivering finished hammered chains with high precision and outstanding results.




Product Detail

Product Tags

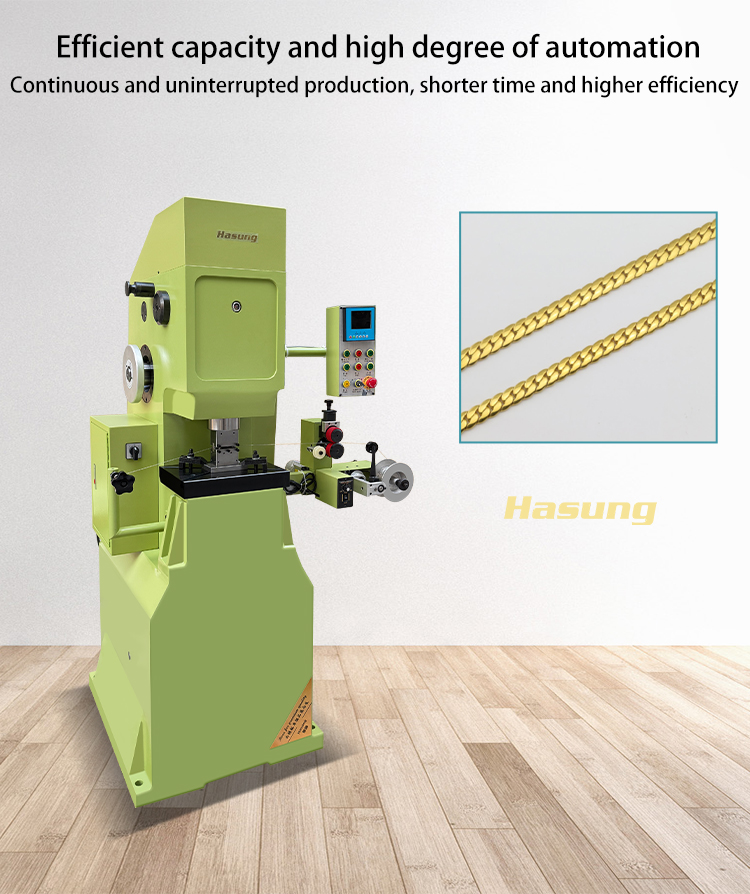

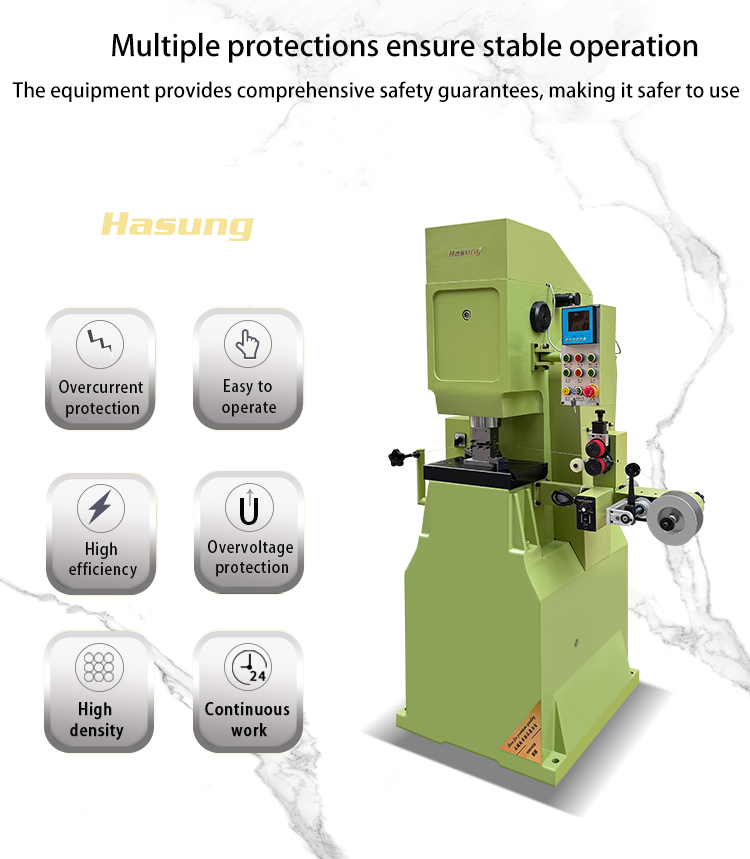

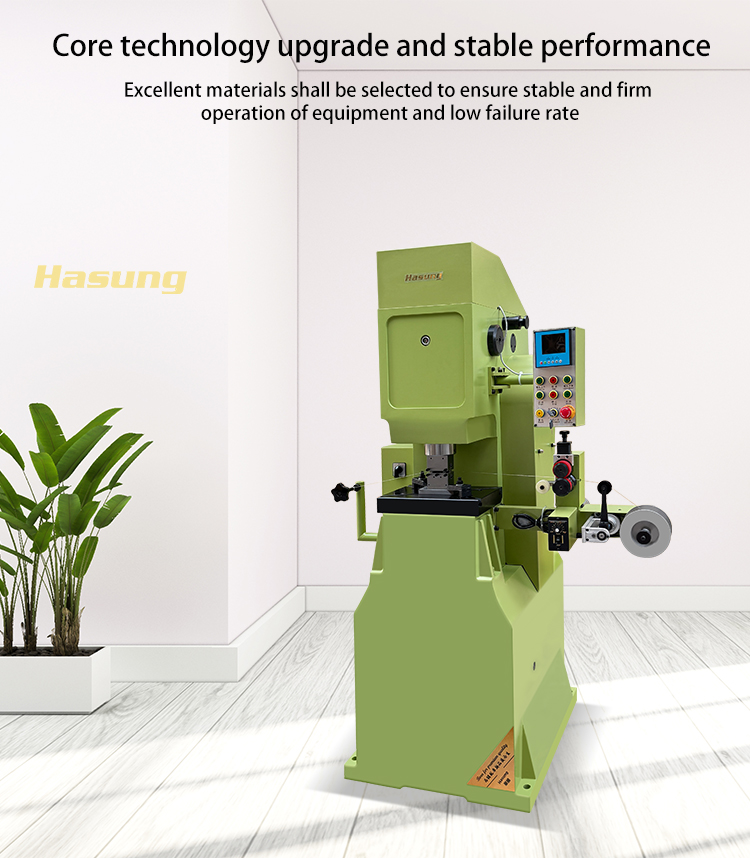

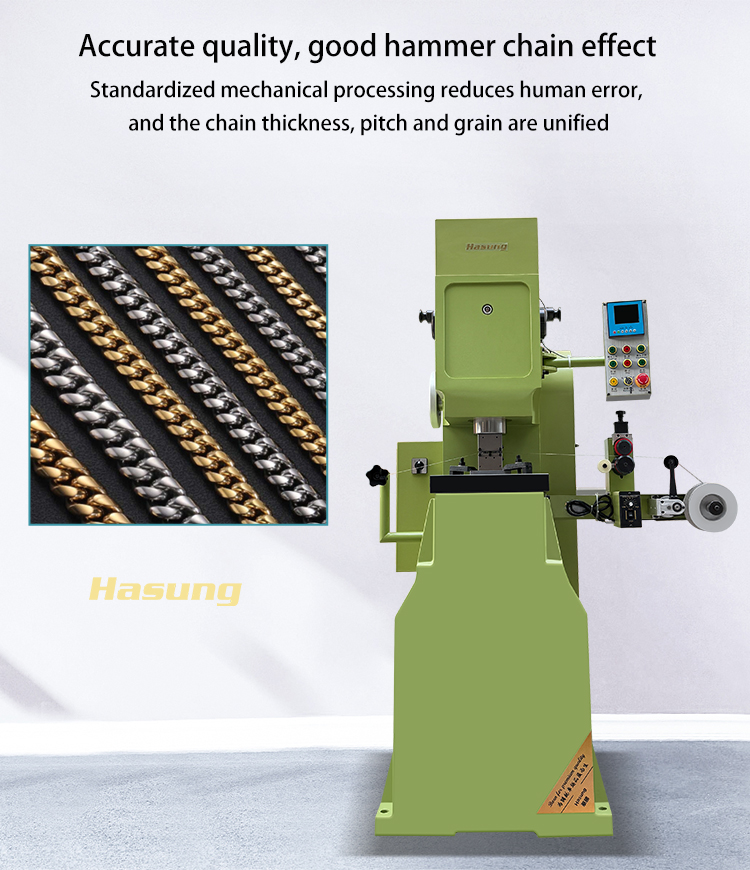

This fully automatic hammering chain machine has undergone technical upgrades and optimization, featuring a solid and sturdy frame construction. With a low failure rate and a high degree of automation, it enables uninterrupted continuous production, significantly improving the processing capacity of jewelry chains. The equipment adopts a standardized mechanical processing mode that reduces manual operation errors, ensuring that the finished chains maintain a high level of uniformity in thickness, pitch, and texture, with excellent processing precision.

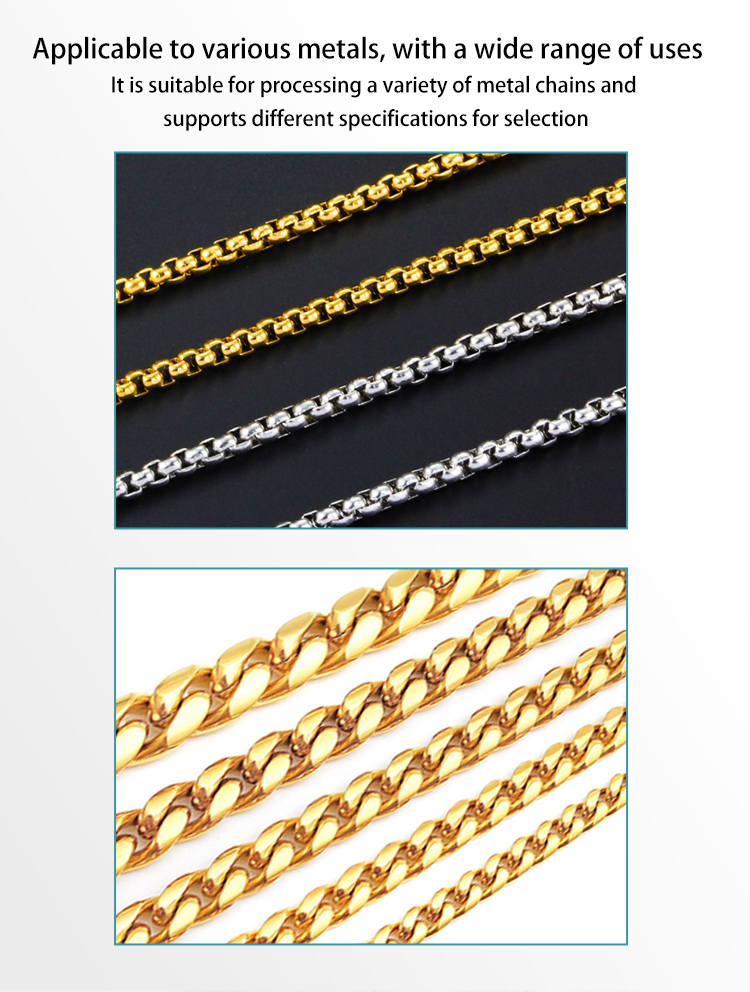

The machine is compatible with various metal materials including gold, silver, and stainless steel, and can process different specifications of jewelry chains such as box chains, Cuban chains, and rope chains, making it suitable for a wide range of applications. The metal chains produced by the machine feature neat and full-bodied shapes, with a bright and refined metallic luster, meeting the high demands of mass jewelry production for consistent appearance and stable quality.

Product parameters
Model HS-2012
Maximum pressure 15000KG
Voltage 380V/50Hz
Speed 150RPM
Pressure conveying 0.5Mpa
Rated power 4000W
Body size 700*700*1780mm
Equipment weight 1100KG

HS-2012-英文详情_01 HS-2012-英文详情_03 HS-2012-英文详情_04 HS-2012-英文详情_05 HS-2012-英文详情_06 HS-2012-英文详情_07
