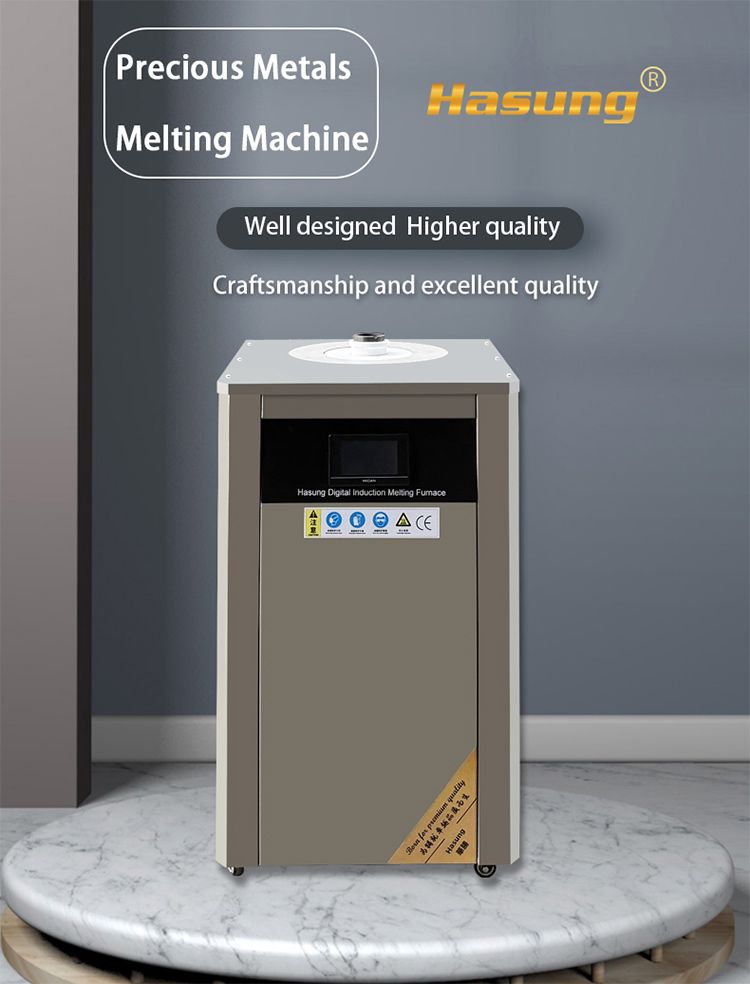

Hasung-Digital Induction Melting Furnace

Short Description:

The equipment adopts Germany lGBT induction heating technology, which is  safer and more convenient. The direct induction of metal makes the metal basically  zero loss. lt is suitable for the smelting of gold, silver and other metals. Cooling  water circulation treatment system, integrated self-developed induciton heating  generator,intelligent powersaving, high output power.Good stability.

Equipment features:

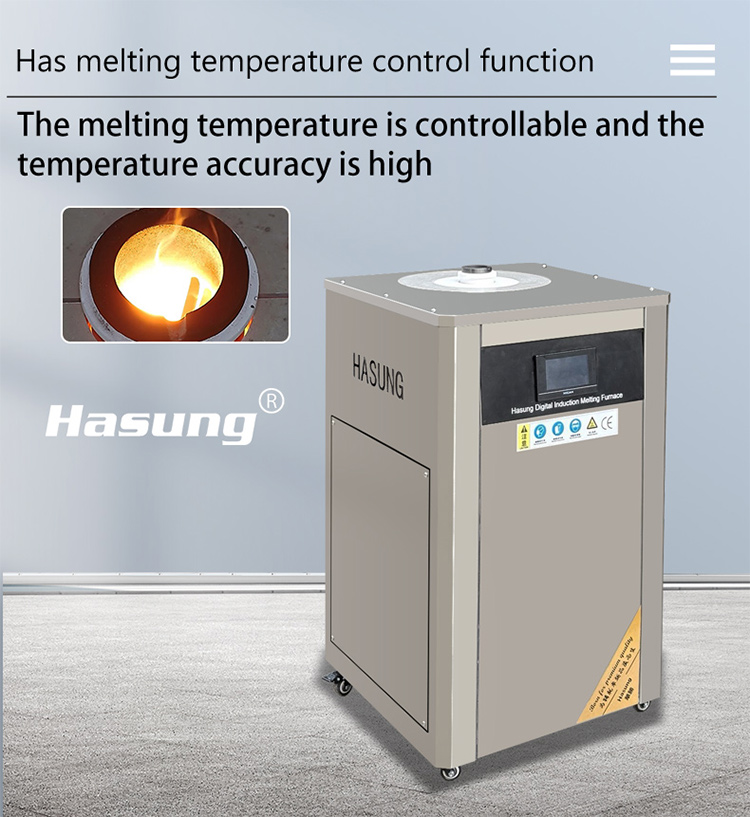

1. The heating temperature is displayed in real-time on the touch screen, and the temperature is controllable.

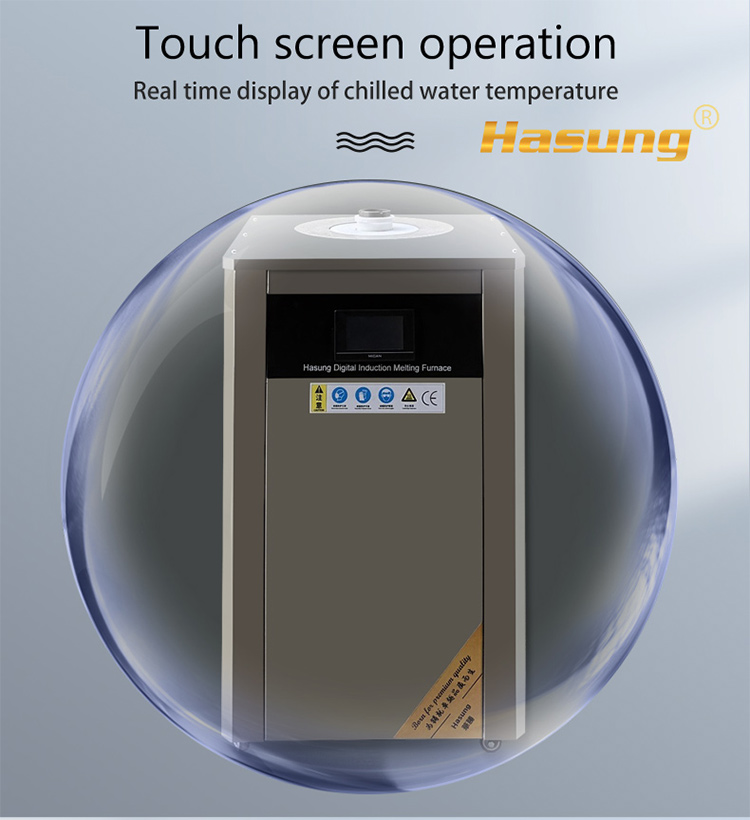

2. The water temp is displayed in real-time, ensuring safety.

3. Fast melting speed, high efficiency.

4. Compact size, exquisite design. Stainless steel body, fine workmanship.


Product Detail

Product Tags

Technical Specifications:

Voltage

380V,50/60HZ, Three-phase

Model

HS-DIMF3

HS-DIMF4

HS-DIMF5

HS-DIMF8

Capacity

3KG

4KG

5KG

8KG

Power

10KW

15KW                                          20KW

Melting Time

2-3 Mins

3-6 Mins

Max Temperature

1600℃

Heating Method

Germany IGBT Induction Heating Technology

Cooling Method

Tap Water/Water Chiller

Dimensions

526*517*900mm

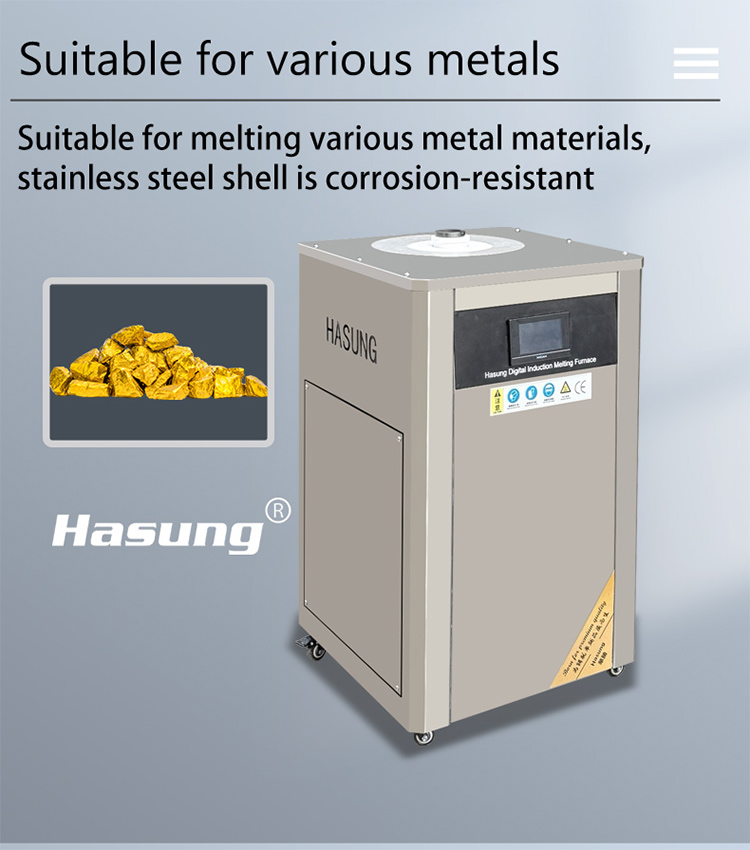

Melting Metals

Gold/K-Gold/Silver/Copper/Alloys

Weight

Approx.60KG

Approx.65KG

Approx.70KG

Approx.75KG





HS-DIMF-详情_01 HS-DIMF-详情_02 HS-DIMF-详情_03 HS-DIMF-详情_04 HS-DIMF-详情_05 HS-DIMF-详情_06 HS-DIMF-详情_07
