Hasung-Tungsten steel rolling mill

Short Description:

Model:HS-M8HP  Hasung Tungsten Steel Tablet Press is specifically designed for precious metal processing, with rollers achieving a hardness of 92-95°HRC. It can compress metals such as gold, silver, and platinum into ultra-thin specifications of 0.03mm, ensuring zero loss during rolling and producing finished products with a smooth, flat, and mirror-like surface.


Product Detail

Product Tags

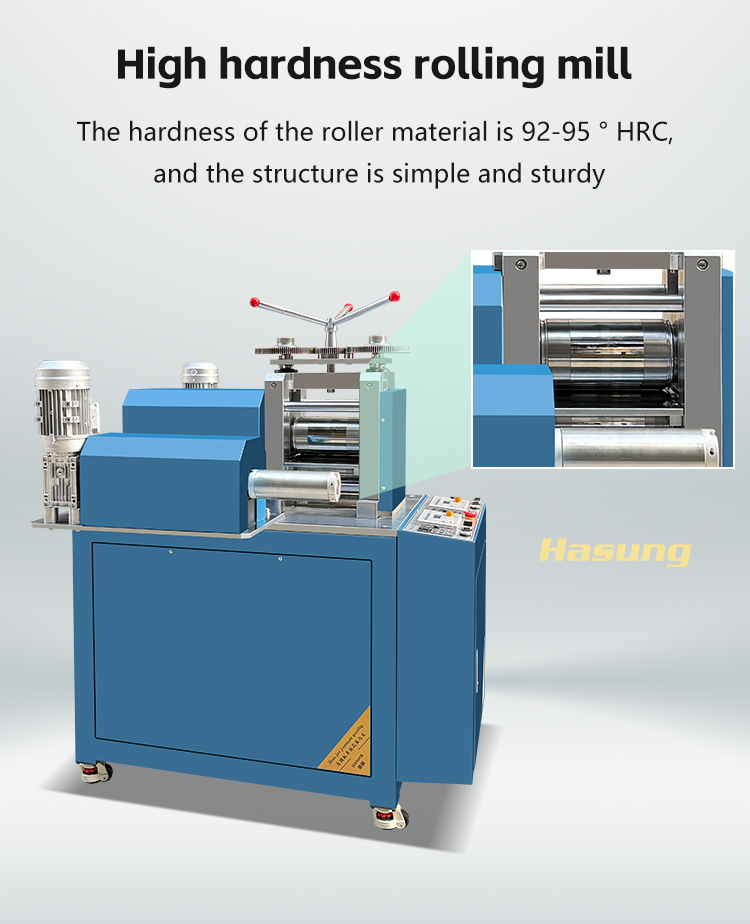

The Hasung tungsten steel rolling mill adopts 92-95 ° HRC high hardness tungsten steel rollers, with a sturdy and wear-resistant structure, which can efficiently process precious metals such as gold, silver, platinum, and alloys. The core equipment for precision machining is capable of rolling materials to an ultra-thin specification of 0.03mm, with zero oxidation and loss throughout the entire processing process, perfectly preserving the value of precious metals.

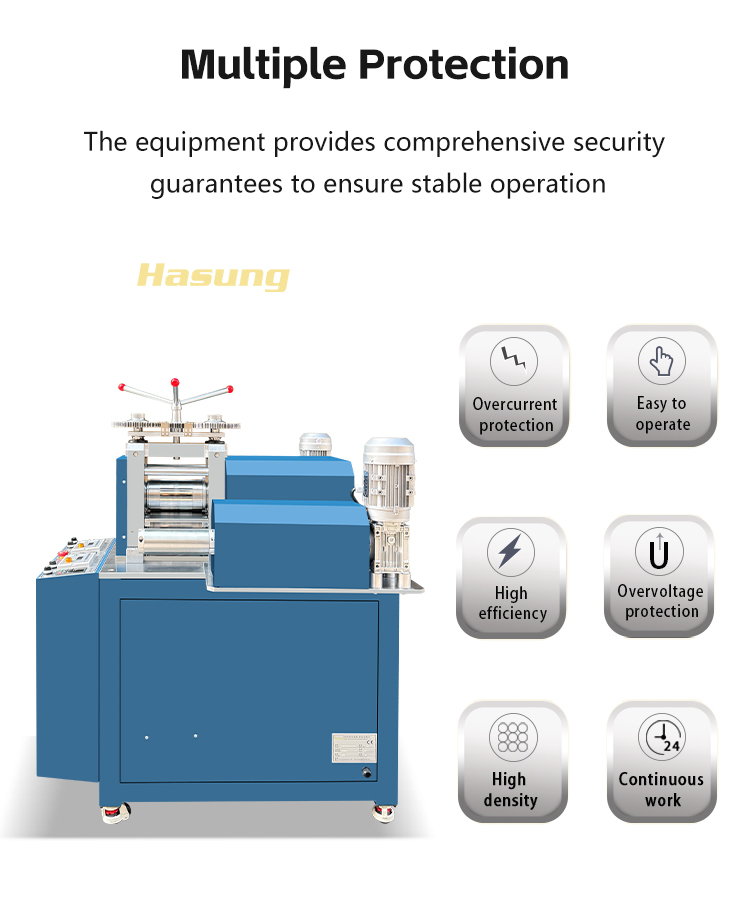

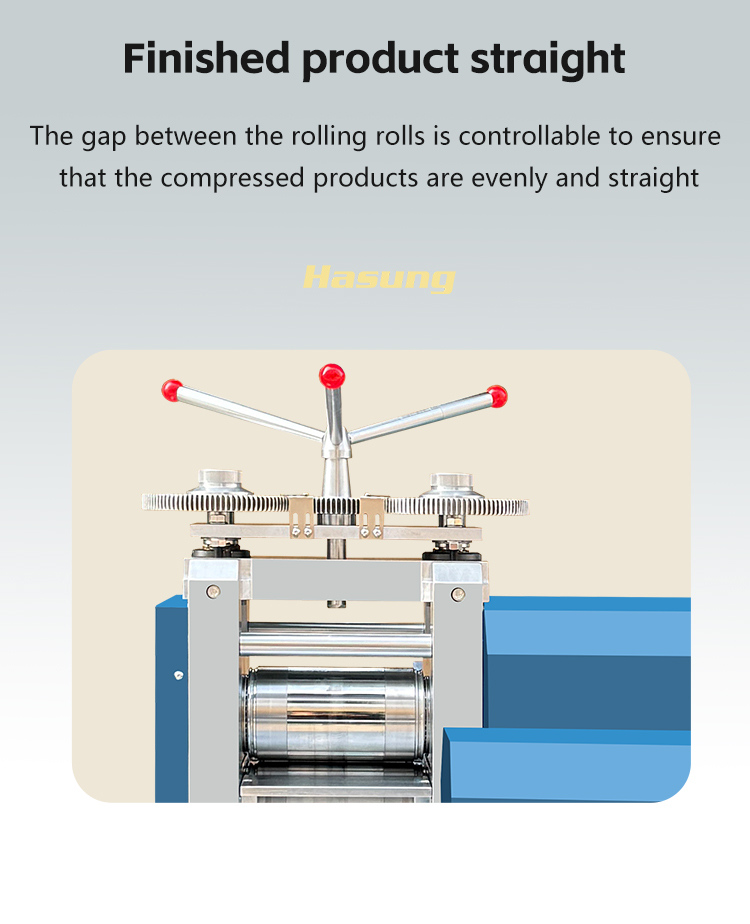

The precise and controllable gap between the equipment rollers ensures that the pressed products are uniform, straight, and have a shiny mirror surface, which is suitable for the strict requirements of high-end manufacturing for flatness. The operation interface is simple and easy to understand, combined with multiple security protection mechanisms, which not only reduces the threshold for manual operation, but also improves production efficiency and job safety, balancing usability and reliability.

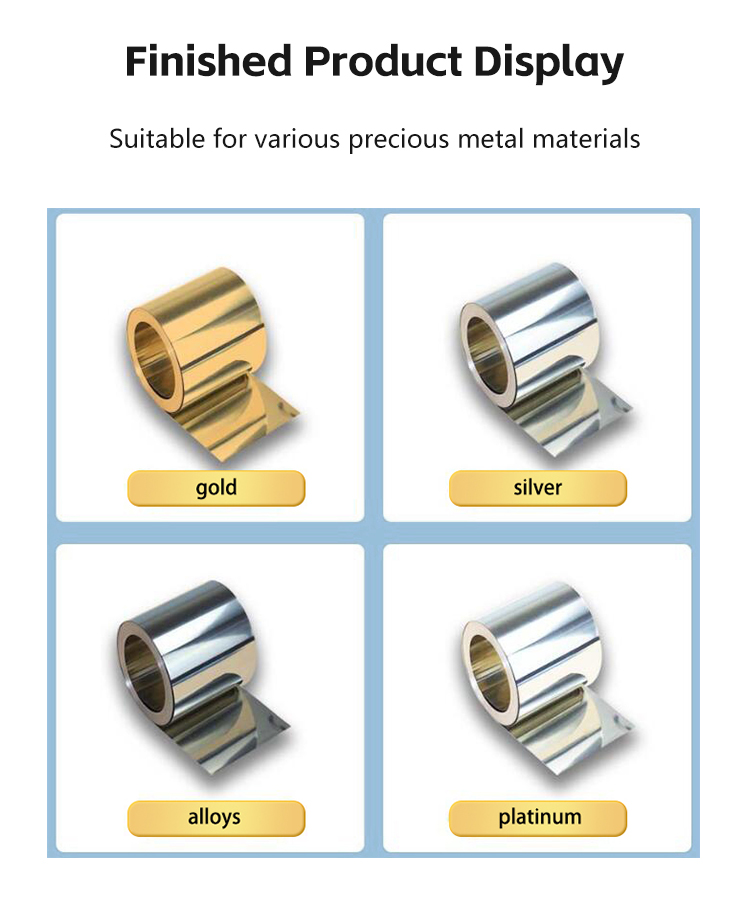

Widely used in industries such as jewelry, precision electronics, aerospace materials, etc., it can meet the processing needs from jewelry blanks, electronic ultra-thin metal foils to special alloy sheets. One stop coverage of multiple types of precious metal materials, helping enterprises achieve high-quality, high value-added precision manufacturing and enhance core competitiveness.



Product Parameters
Model HS-M8HP
Voltage 380V/50Hz/3-phase
Power 5.6KW
Roller material imported tungsten steel
Roller size Diameter 120 * Width 120mm
Hardness 92-95°HRC

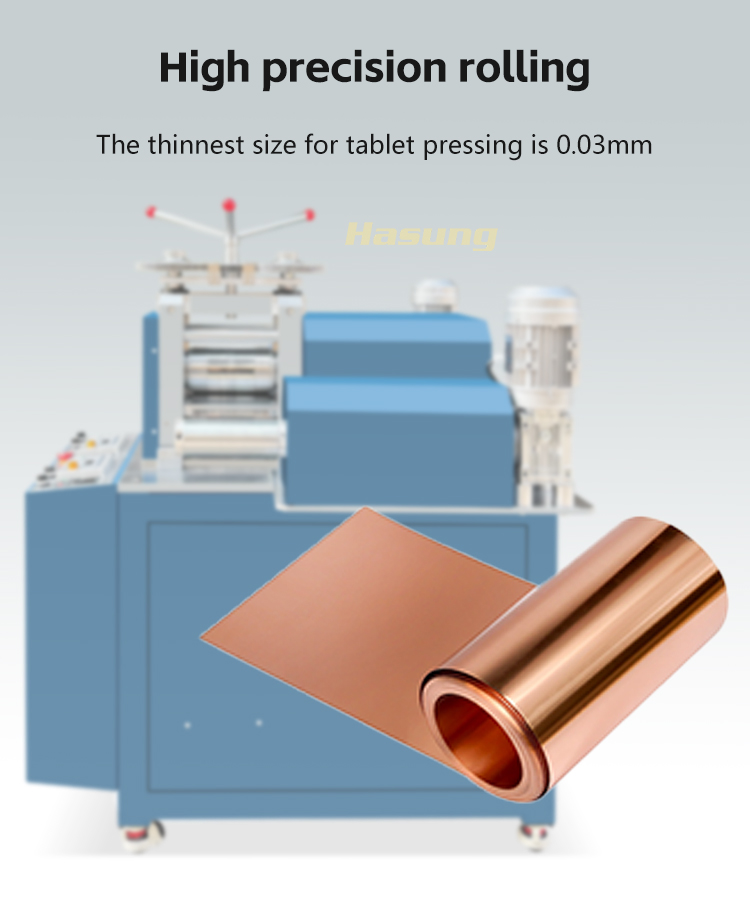

Thinnest size 0.03mm
Applied To Gold/Silver/Copper/Alloy
Body size 1200*1100*1300mm
Body weight 600kg

HS-M8HP_01 HS-M8HP_02 HS-M8HP_03 HS-M8HP_04 HS-M8HP_05 HS-M8HP_06 HS-M8HP_07 HS-M8HP_08
