10HP Siemens touch screen rolling mill-Hasung

Short Description:

Model:HS-10HPT

10 HP CNC precision belt Siemens touch screen rolling mill, equipped with Siemens touch system, with intuitive and efficient operation. High hardness mirror roller, with high rolling accuracy and straight finished products, suitable for processing precious metals such as gold, silver, and copper. The body is stable and low-noise, with real-time thickness monitoring, meeting the precision requirements of jewelry and industrial foil production.


Product Detail

Product Tags

Accurate control, stable and efficient

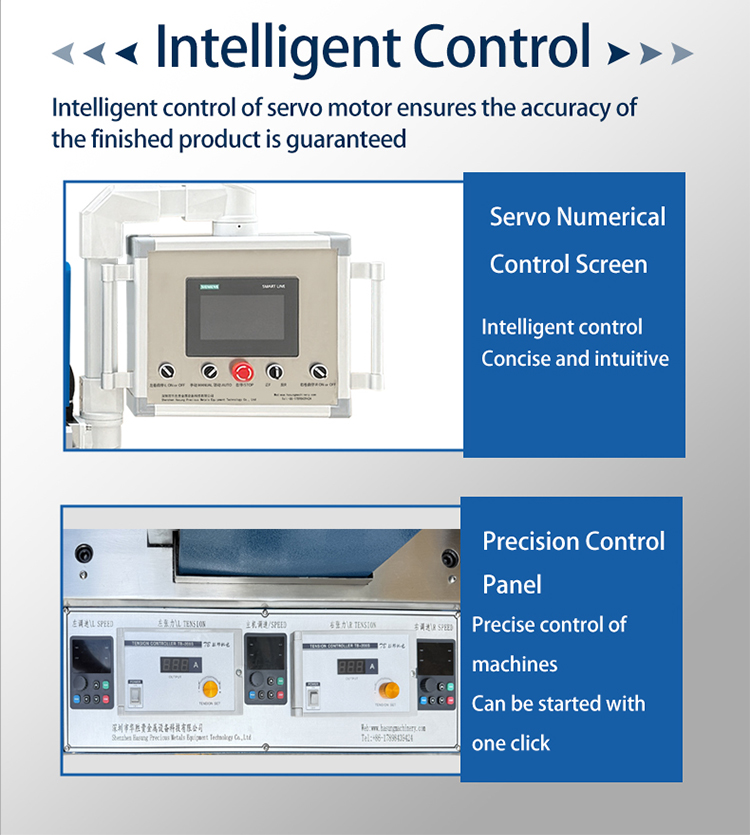

Equipped with a 10HP high-power power system and Siemens intelligent touch system, the rolling parameters can be set with one click and real-time feedback, and the thickness error can be controlled, greatly reducing the threshold for manual operation. The high hardness mirror roller is wear-resistant and deformation resistant, and can ensure the surface smoothness of the finished product even after long-term use. It is suitable for various precious metals such as gold, silver, and copper, and can easily achieve batch precision rolling production.

Safe and durable, easy to maintain
The equipment adopts a fully enclosed protective structure and an emergency stop button, ensuring safe operation; The bottom is equipped with universal casters, making it easier to move and clean. The overall use of industrial grade blue paint anti rust treatment, modular design of key components, and convenient daily maintenance and repair provide long-term stable production guarantee for precious metal jewelry and industrial foil processing.

Voltage 380V,50/60Hz,Three-phase
Model HS-8HPT HS-10HPT
Power 5.6KW 7.5KW
Roller Size Diameter 120×Width 200mm Diameter 150×Width 220mm
Roller Material Cr12MoV
Hardness 60-61°
Operation Mode Gear Drive
Dimensions 1000*620*1560mm
Weight Approx.600kg Approx.750kg

HS-M8HPT详情_08 HS-M8HPT详情_02 HS-M8HPT详情_05 HS-M8HPT详情_06 HS-M8HPT详情_07
