Wholesale Price Jewelry Induction Casting Machine - Vacuum Continuous Casting Machine for Gold Silver Copper Alloy – Hasung

Short Description:

Product Detail

Product Tags

Feedback (2)

Our enhancement depends around the sophisticated devices ,exceptional talents and repeatedly strengthened technology forces for Melting Furnace For Platinum , Vacuum Metal Bar Casting , Powder Making Machine Gains Casting Machine , We have been normally seeking forward to forming profitable company relationships with new clientele around the environment.

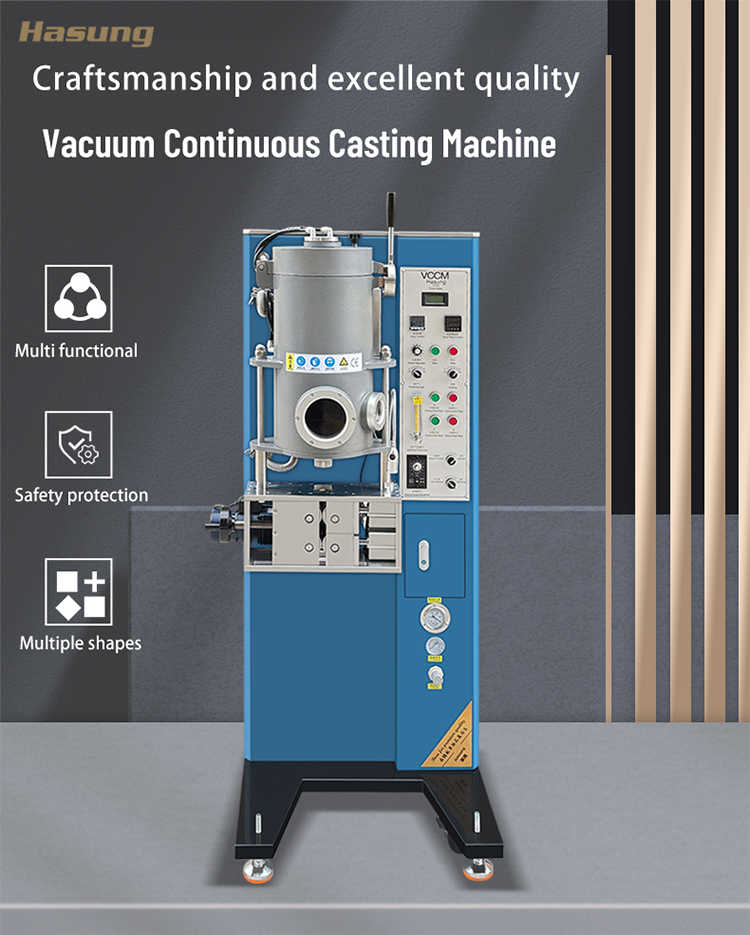

Wholesale Price Jewelry Induction Casting Machine - Vacuum Continuous Casting Machine for Gold Silver Copper Alloy – Hasung Detail:

Technical Parameters

Power Supply	380V 50/60Hz,3 phase
Power Input	8KW	15KW
Max Temp	1500°C
Melting speed	3minutes	3- 5min
Capacity	2kg(18K gold)	5kg(18K gold)
Suitable for	K-Gold,Gold, silver, copper
Maximum flasks diameter	can be customized
Operation method	One-key operation to complete the entire process, POKA YOKE foolproof system

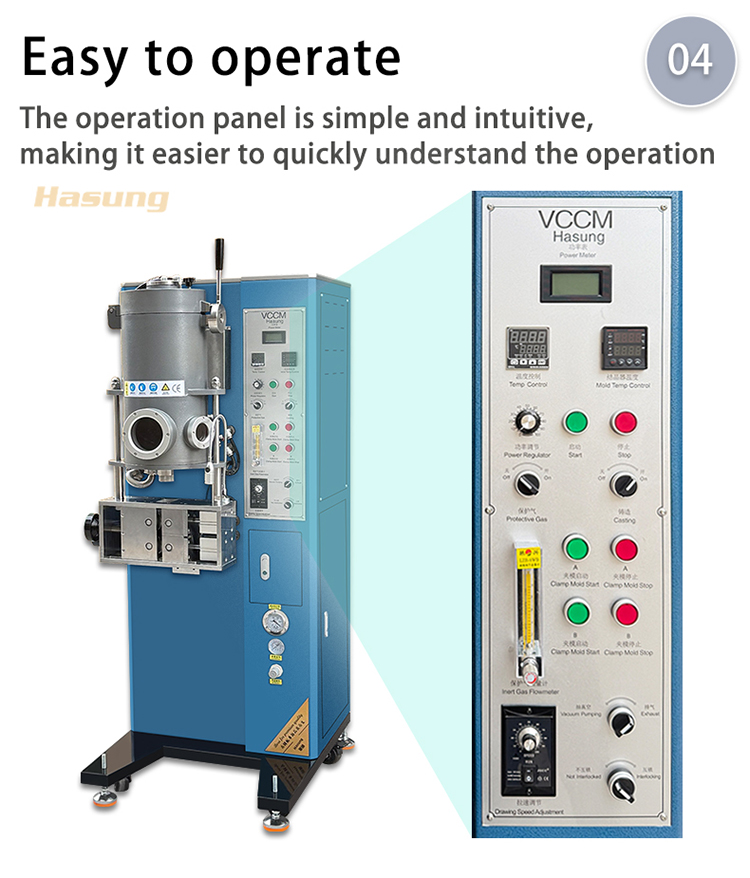

control system	Mitsubishi PLC+Human-machine interface intelligent control system (optional)

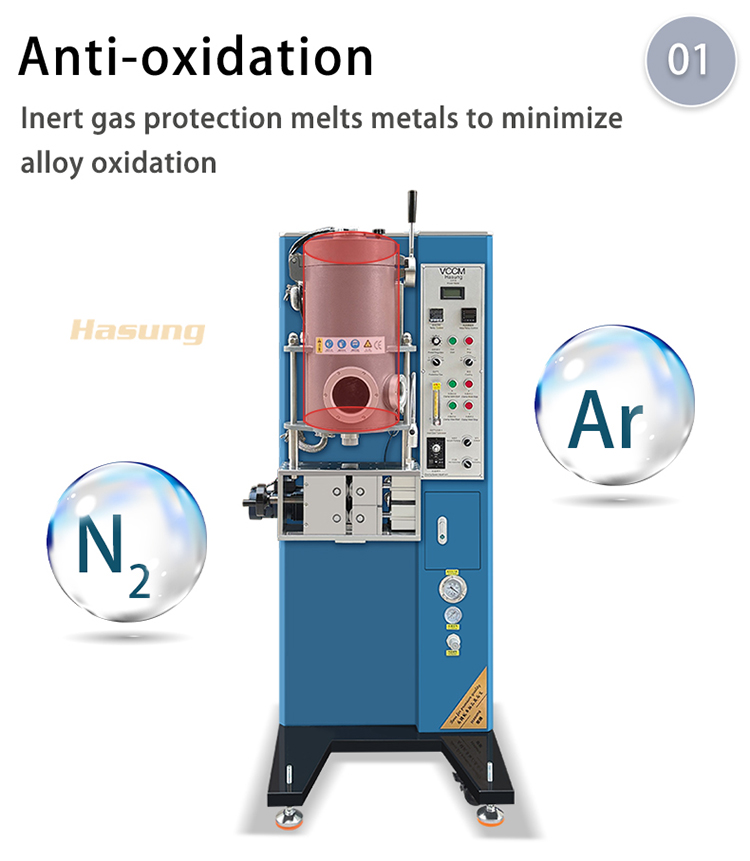

Blanketing with inert gas	Nitrogen/argon selection
Temperature accuracy	±1℃

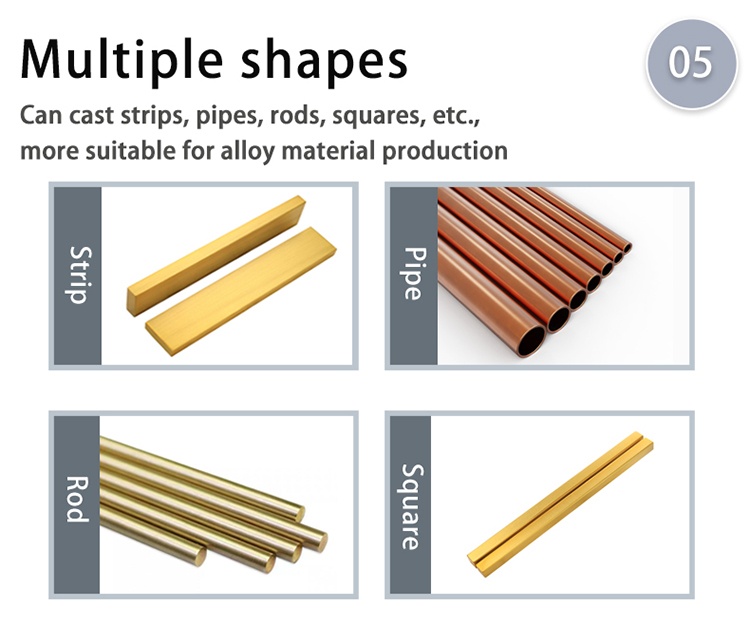

Product shape	strip, square, tube, can be customized strip
Water pressure	0.2-0.4Mpa
Water temp	18-25C
Cooling type: water	chiller or Running water
Vacuum pump	Original German vacuum pump -98Kpa
Dimensions	9606001580mm
Weight	280KG	280KG

Product Display

HS-VCC-(1)
HS-VCC-(3)
HS-VCC-(2)

Product detail pictures:
