High reputation Gold And Silver Melting Furnace – Induction Melting Furnace for Gold Platinum Silver Copper Rhodium Palladium – Hasung Detail:
Technical Parameters
With the MU series We offer melting equipment for many different demands and with crucible capacities from 1kg up to 8kg(Au). The metal materials are molten in open crucibles and poured by hand with a tong into the necessary mould.
Melting Units MU Series
Flexible melting machines are designed to melt gold and silver alloys and as well as aluminium, bronze, brass, etc. Due to the strong induction generator up to 15 kW and the low induction frequency the stirring effect of the metal is excellent.
The MUQ series as induction melting machines for platinum, palladium, rhodium, gold, silver, etc.
The MUQ series apply higher power comparing to MU series which can easily melt thoese high melting point metals in a fast way.
Once you purchase the Hasung induction gold furnace for melting gold, silver, copper and other alloys, it serves as an investment because it can last for years, making your cost of production efficient.

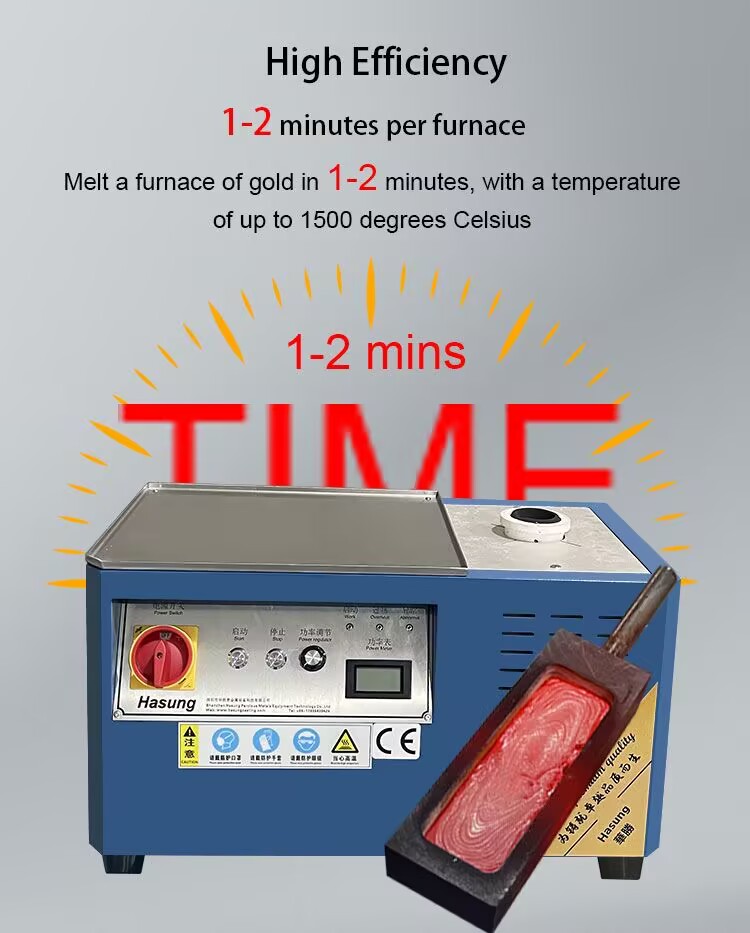

Melting with this electric gold furnace is efficient and fast enough to melt all metals within 2 to 4 minutes. The fast melting rate does not affect the quality of melting at all.
The induction heating system of our melting machine for silver and gold makes the crucible to get heated at the same rate, making all energy savings comparing to other suppliers. With the same power supply, Hasung’s machine is much faster melting speed.
Technical Parameters
| Model No. | HS-MU1 | HS-MU2 | HS-MU3 | HS-MU4 | HS-MU5 | HS-MU6 | HS-MU8 |
| Voltage | 220V single phase/380V 3 phases; 50/60Hz | 380V, 3 phases, 50/60Hz | |||||
| Power | 5KW/8KW | 8KW | 15KW | ||||
| Max Temp | 2000°C | ||||||
| Melting Time | 1-2 min. | 1-2 min. | 2-3 min. | 2-3 min. | 2-3 min. | 3-5 min. | |
| PID temp control | Optional | ||||||
| Temp Accuracy | ±1°C | ||||||
| Capacity (Gold) | 1kg | 2kg | 3kg | 4kg | 5kg | 6kg | 8kg |
| Application | Gold, K gold, silver, copper and other alloys | ||||||
| Cooling type | Water chiller(sold separately) or Running water (water pump built in) | ||||||

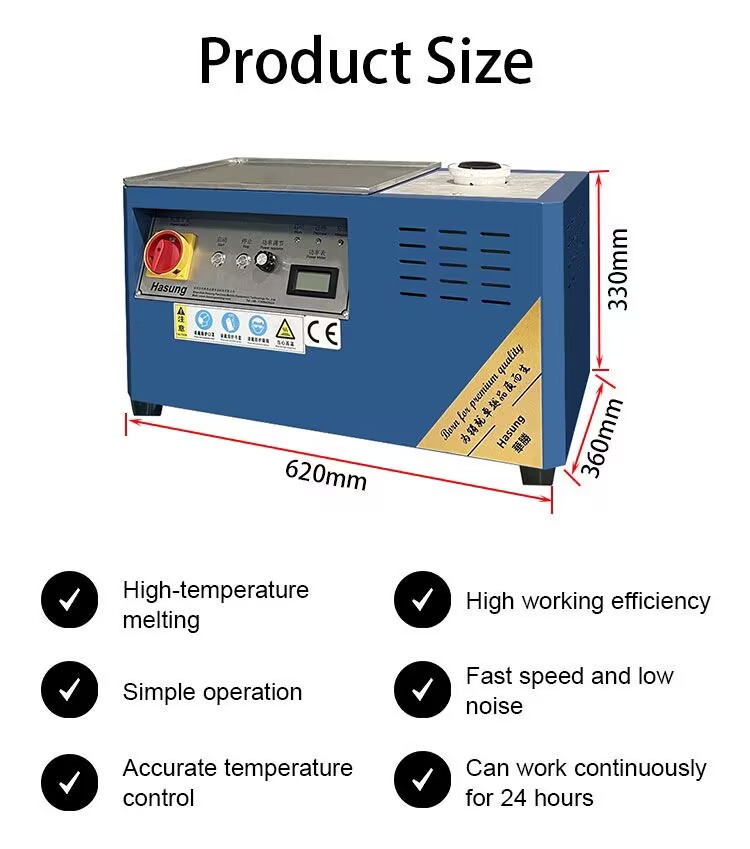

| Dimensions | 56x48x88cm | ||||||
| Net Weight | approx. 60kg | approx. 62kg | approx. 65kg | approx. 66kg | approx. 68kg | approx. 70kg | approx. 72kg |
| Shipping Weight | approx. 85kg | approx. 89kg | approx. 92kg | approx. 95kg | approx. 98kg | approx. 105kg | approx. 110kg |
| Model No. | HS-MUQ1 | HS-MUQ2 | HS-MUQ3 |
| Voltage | 380V ; 50/60Hz 3phases | ||
| Power | 8KW | 15KW | |
| Max Temp | 2100°C | ||
| Melting Time | 1-2 min. | 1-2 min. | 3-5 min. |
| Temp Accuracy | ±1°C | ||
| PID temp control | Optional | ||
| Capacity (Pt) | 1kg | 2kg | 3kg |
| Application | Platinum, Palladium, Stainless steel, Gold, K gold, silver, copper and other alloys | ||
| Cooling type | Water chiller(sold separately) or Running water (water pump) | ||
| Dimensions | 56x48x88cm | ||
| Net Weight | approx. 60kg | approx. 62kg | approx. 63kg |
| Shipping Weight | approx. 89kg | approx. 94kg | approx. 95kg |
Product Display
Product detail pictures:
