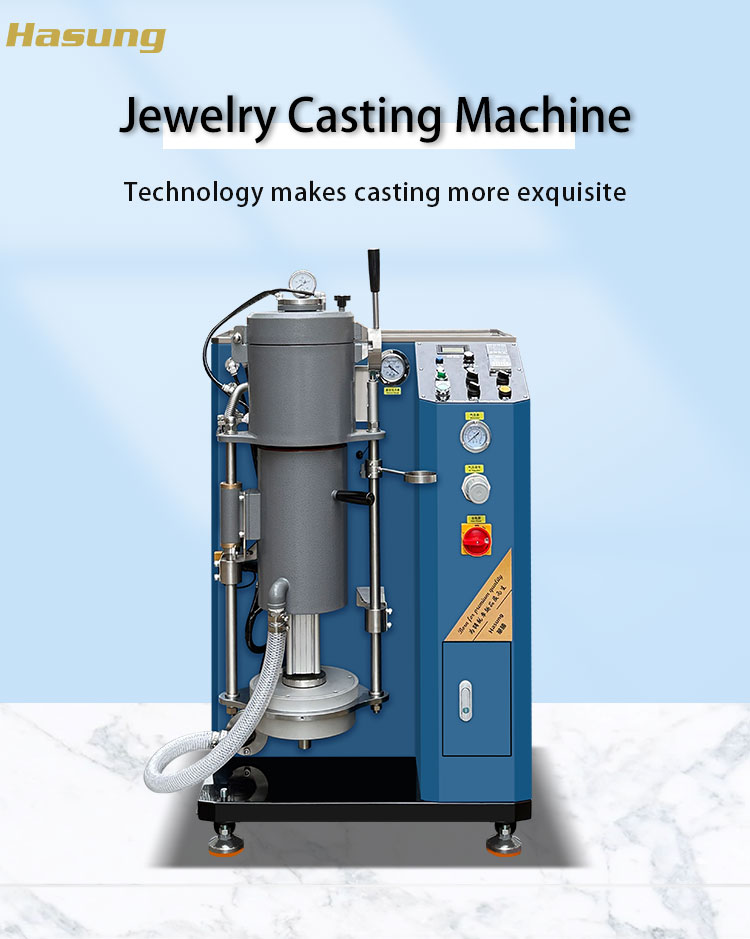

2022 Good Quality Silver Gold Jewellery – VPC Series Vacuum Pressure Casting Machine for Jewellery – Hasung
2022 Good Quality Silver Gold Jewellery – VPC Series Vacuum Pressure Casting Machine for Jewellery – Hasung Detail:
Features
Hasung Precious Metals Equipment Advantages

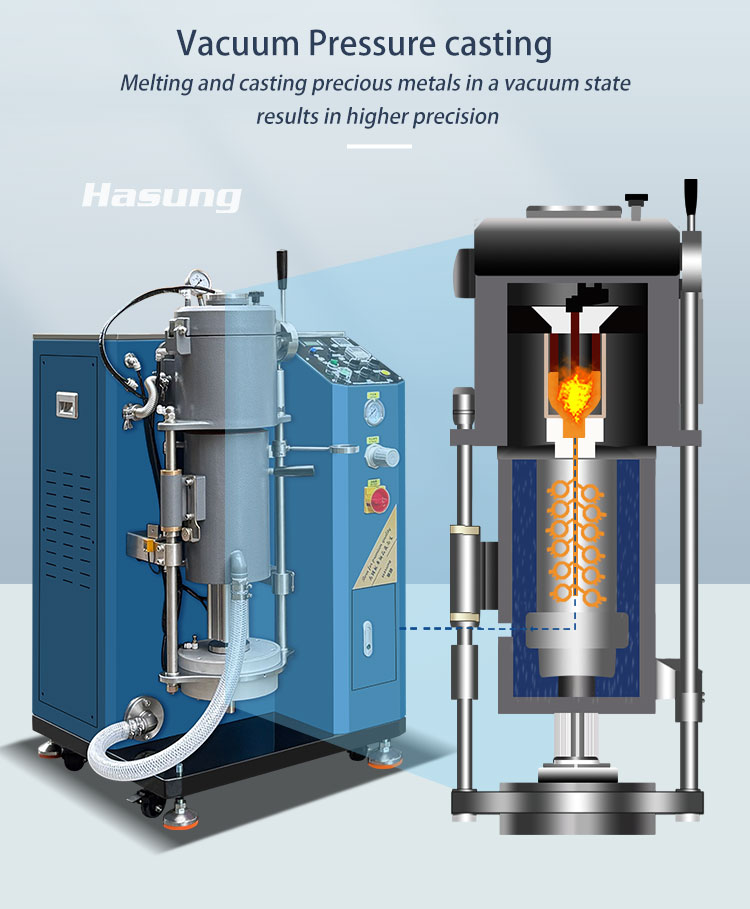

Hasung VC series vacuum pressure casting machines reach from small to large capacities, from semi-automatic systems to solutions for a fully automatic casting production. A lot of special features enable you to optimize each casting according to its individual characteristics. Generally, for gold silver jewellery casting purpose, the smallest capacity is from 1kg, 2kg, 3kg, 4kg up to 8kg, to maximum capacity such as 20kg or 30kg.
Automatic vacuum and overpressure in the upper melting chamber and down flask chamber
When switch on “Cast”, Vacuum and inert gas in the melting chamber provides the degassing of the alloy and avoids undesired oxidation during melting. Vacuum in the down flask chamber during casting improves the form filling when casting filigree parts and avoids air inclusions. Before metal pouring, vacuum and inert flowing into down flask chamber for cleaning which guarantees smooth casting metals.

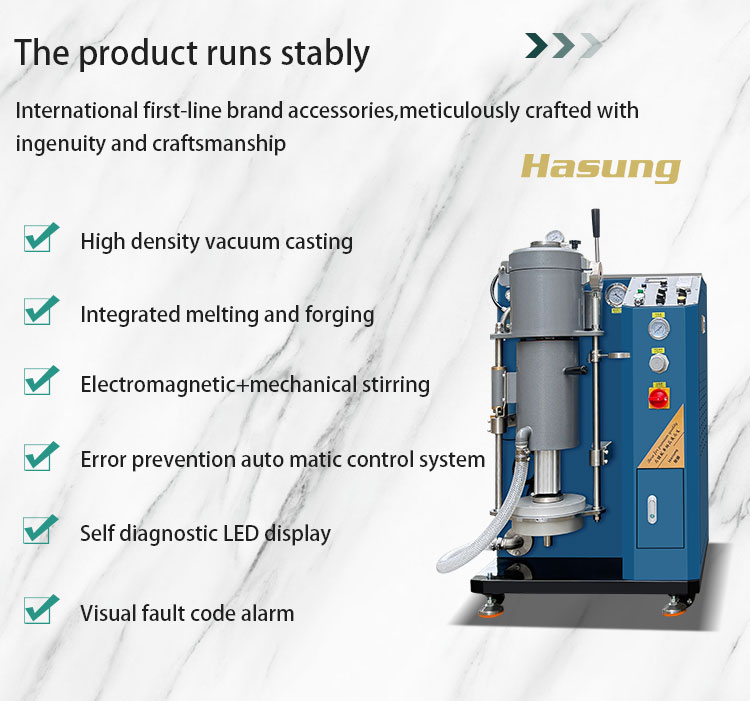

Why Do You Choose Hasung Vacuum Pressure Casting Machine？
Hasung vacuum Casting machines compare to other companies
1. After mode without oxidation
2. Variable heat for gold loss

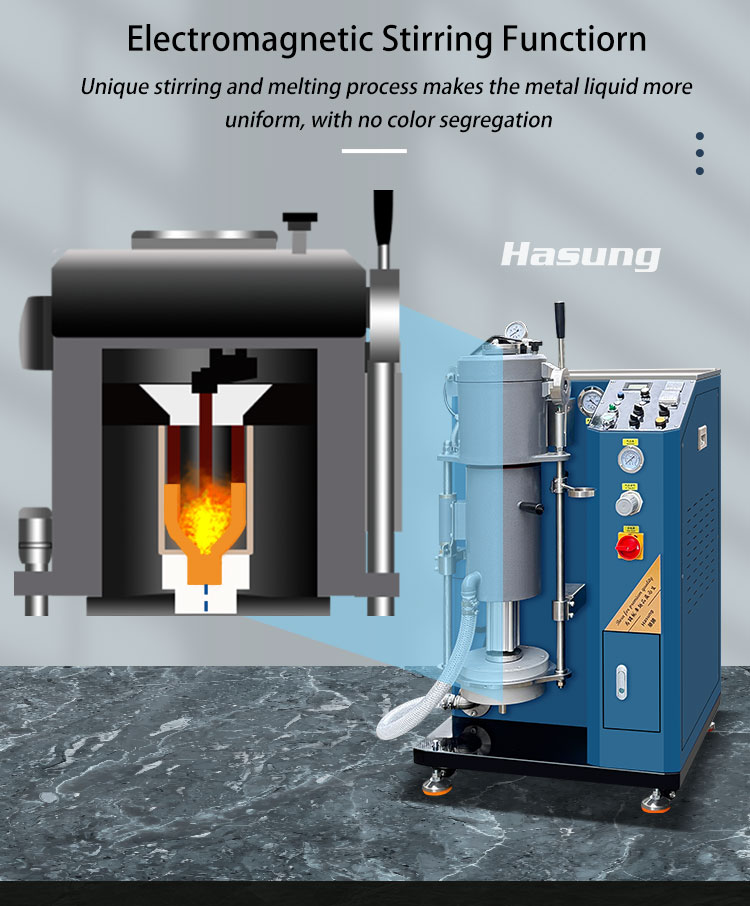

3. Extra mixing for good segregation of gold
4. Good melting speed
5. Easy for cleaning dust effecting by plaster mould
6. Easy to maintain
7. Accurate pressure timing
8. Self diagnosis – P.I.D auto tuning
9. Easy operation with only one button “CAST ” to finish casting job.
Hasung the original parts are from well-known domestic Japan and German brands.
Technical Parameters
| Model No. | HS-VPC1 | HS-VPC2 | HS-VPC4 | HS-VPC8 |
| Voltage | 220V, 50/60Hz single phase | 220V/380V, 50/60Hz 3 phaese | 380V, 50/60Hz 3 phases | |
| Power | 5KW | 5KW/8KW | 15KW | |
| Max Temp | 1500°C | |||

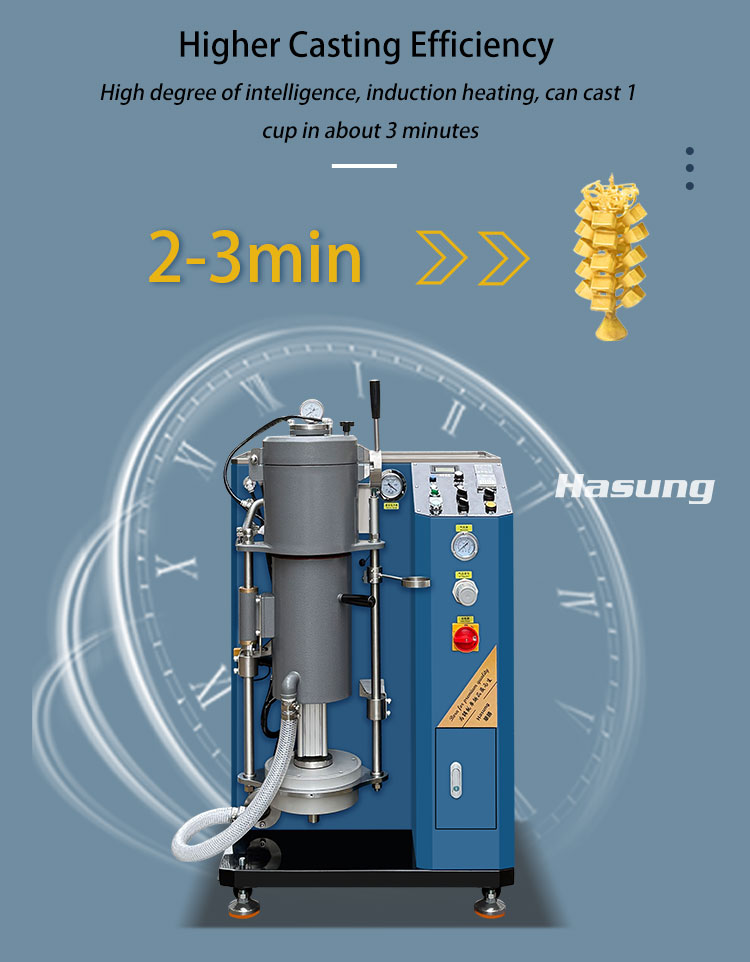

| Melting Time | 2-3 min. | 3-5 min. | 3-6 min. | 3-5 min. |
| Inert Gas | Argon / Nitrogen | |||
| Pressure | 10-300Kpa (Adjustable) | |||
| Temp Accuracy | ±1°C | |||
| Capacity (Gold) | 1kg | 2kg | 4kg | 8kg |
| Max. Flask size | 4″x10″ / 5″x12″ | 5″x12″/6.3″x12″ | 6.3″x12″/8.6″x13″/10″x13″ | |
| Vacuum Pump | High quality vacuum pump/German vacuum pump, vacuum degree – 100KPA (optional) | |||
| Application | Gold, K gold, silver, copper and other alloys | |||
| Operation method | One-key operation to complete the entire process, POKA YOKE foolproof system | |||
| Cooling type | Water chiller(sold separately) or Running water | |||
| Dimensions | 680*880*1530mm | |||
| Weight | approx. 150kg | approx. 150kg | approx. 200kg | approx. 250kg |

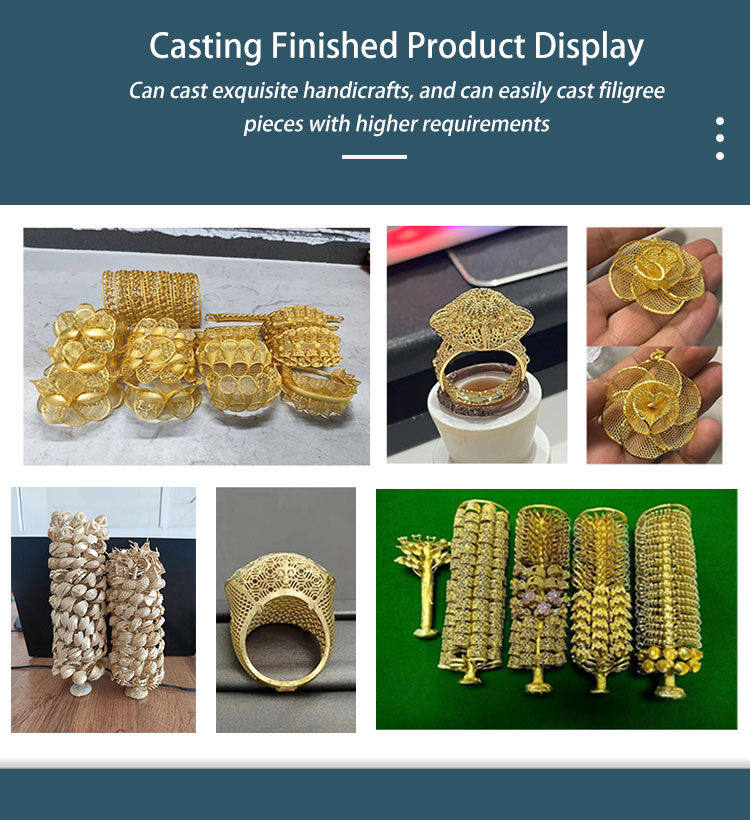

Casting samples
Product detail pictures:
