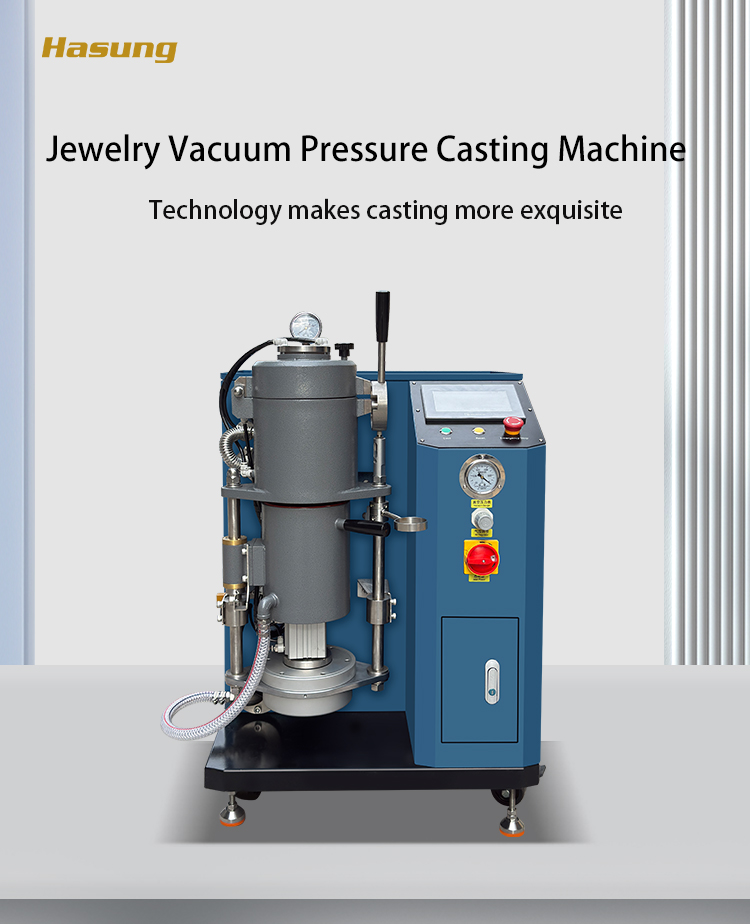

1KG Touch Screen Jewelry Vacuum Pressure Casting Machine-Hasung
1. Core performance advantages
1. Precise intelligent control, with zero defects in quality, equipped with a 7-inch high-definition touch screen and intelligent PLC control system, supporting custom temperature control and pressure parameters, with a temperature control accuracy of ± 1 ℃, suitable for the melting needs of various precious metals such as gold, K gold, silver, platinum, etc; Built in multiple sets of process parameter storage libraries, one click retrieval can achieve standardized production, completely avoiding manual operation errors, and the finished product color is uniform without segregation.

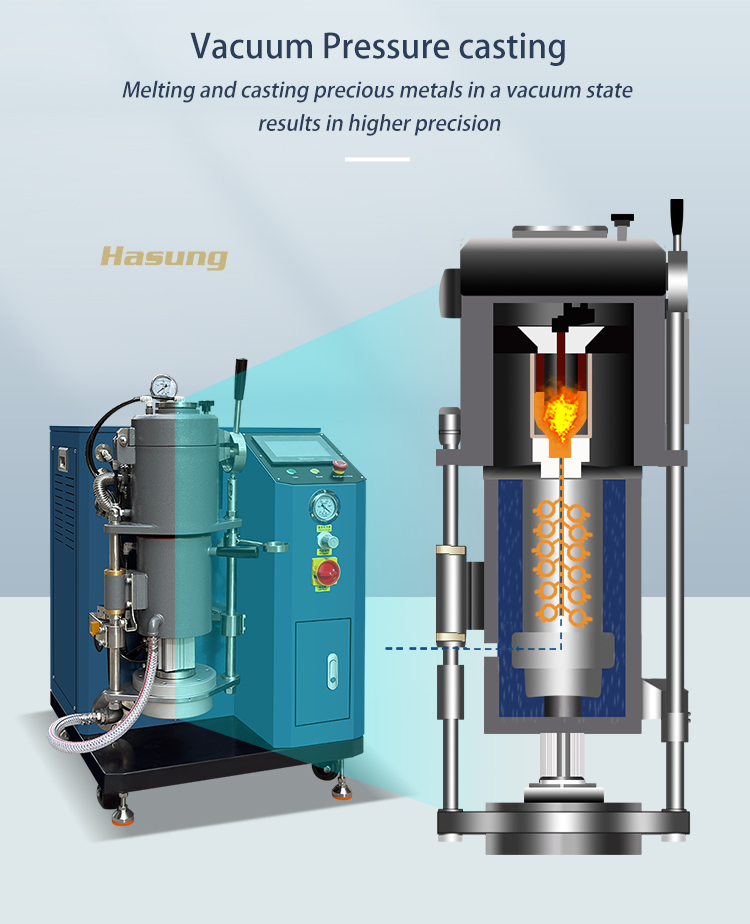

2. Vacuum pressurization, casting without defects adopts dual protection of vacuum suction cable and inert gas protection (nitrogen/argon), with zero oxidation and no impurities during the melting process; 0.2MPa instantaneous high-pressure injection, strong filling of mold details, completely eliminating problems such as casting pores, sand holes, shrinkage holes, etc. The finished product has extremely high density and excellent surface smoothness, greatly reducing losses in subsequent polishing and finishing processes.

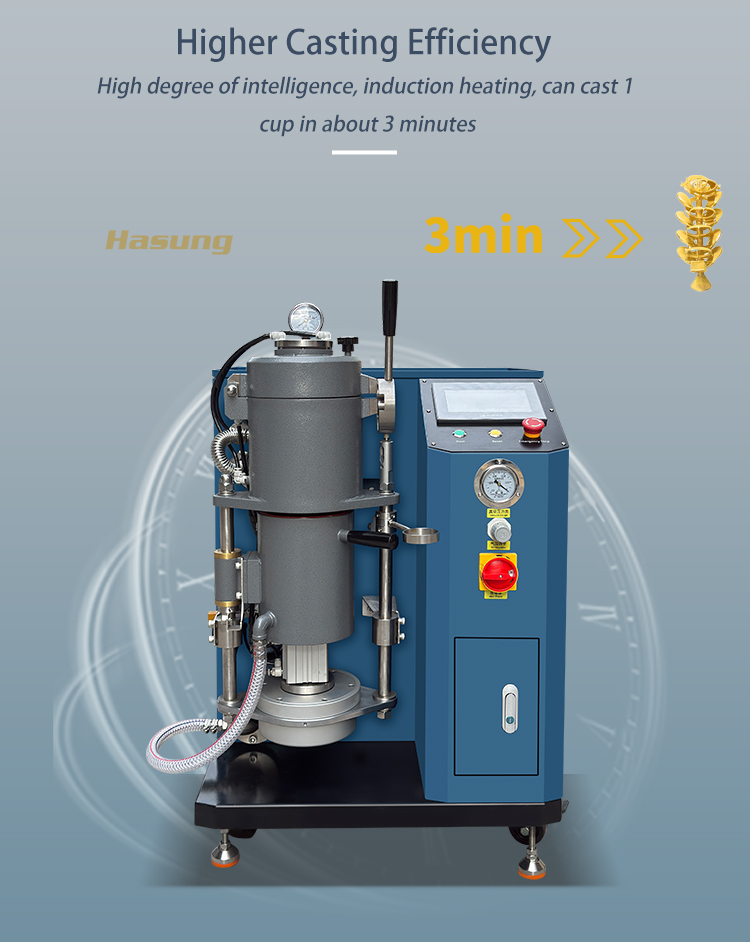

3. Efficient and energy-saving, suitable for integrated design of small batch production melting and casting, can complete one furnace forming in 3-5 minutes, with an efficiency increase of 60% compared to traditional equipment; The 1KG rated capacity accurately matches jewelry sampling and small batch customization scenarios, with a 220V single-phase 8KW low-power configuration that meets the electricity needs of both studios and small factories. It is energy-saving and practical.

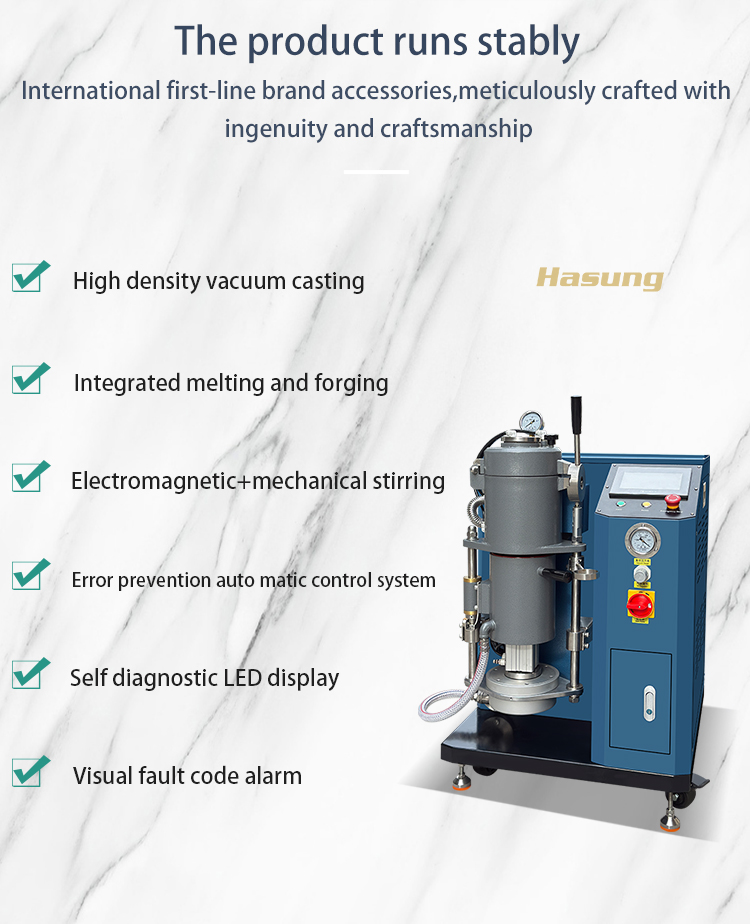

4. Durable and stable, with worry free operation and maintenance. The core components are selected from international first-line brands such as Infineon IGBT from Germany, SMC pneumatic components from Japan, and Schneider switches. The body is reinforced with an all aluminum structure, with a service life of over 10 years; Equipped with a water and electricity isolation safety system and abnormal self diagnosis alarm function, the entire operation is safe and protected, and the daily maintenance cost is low.
2. Applicable scenarios

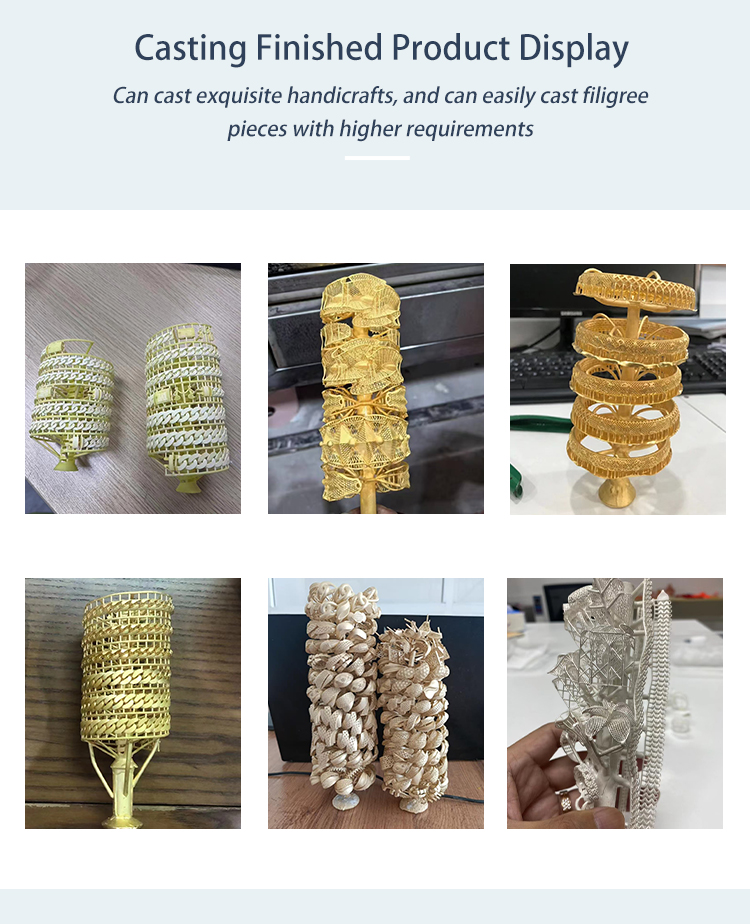

Specially designed for jewelry studios, small processing plants, and custom workshops for handicrafts, it is suitable for fine jewelry casting such as filigree, hollow out, and complex textures. It can also be used for batch molding of precious metal products such as gold ingots and silver bars. It is a core production equipment that balances quality and efficiency.
| Model | HS-VCP1-T |
|---|---|
| Voltage | 220V,50/60Hz, single-phase |
|
Power |
8KW |
| Capacity | 1Kg |
| Temperature range | Standard 0~1150 ℃ K type/optional 0~1450 ℃ R type |
| Maximum pressurization pressure | 0.2MPa |
| Noble gas | Nitrogen/Argon |
| Cooling method | water cooling system |
| Casting method | Vacuum suction cable pressurization method |
| Vacuum device | Install a vacuum pump of 8L or more separately |
| Abnormal warning | Self diagnostic LED display |
| Cupola metal | Gold/Silver/Copper |
| Device dimensions | 660*680*900mm |
| Weight | About 140Kg |
-
